| Weight | 5 lbs. | ||
| Power Source | 4 C-Cell batteries. | ||
| Battery Life | Approximately 16 hours. | ||
| STANDARD FREQUENCIES | |||
| Sonde | 16 Hz, 512 Hz, 640 Hz, 850 Hz, 8 kHz, 16 kHz, 33 kHz. | ||
| Active Line Trace | 128 Hz, 1 kHZ, 8 kHz, 33 kHz, 262 kHz. | ||
| Passive AC Line Trace | 60 Hz, 50 Hz | ||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |
| LB. | KG | ||
| 96967 | NaviTrack II Locator | 5.1 | 2.3 |
| 13673 | NaviTrack II Locator | 5.1 | 2.3 |
|
ACCESSORIES
|
|||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |
| LB. | KG | ||
| 14818 | NaviTrack Line Transmitter | 8 | 3.40 |
| 16728 | Remote Transmitter, 512-AAA | 0 | 0.18 |
| 19793 | Float Sondes (2), Plus Extra Battery | 0 | 0.18 |
| 20168 | NaviTrack Brick Transmitter | 2 | 0.90 |
| 20973 | SeekTech 4” (100 mm) Inductive Signal Clamp | 2 | 0.90 |
|
REPLACEMENT
PARTS
|
|||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |
| LB. | KG | ||
| 12543 | Marker Chips and Clip | - | - |

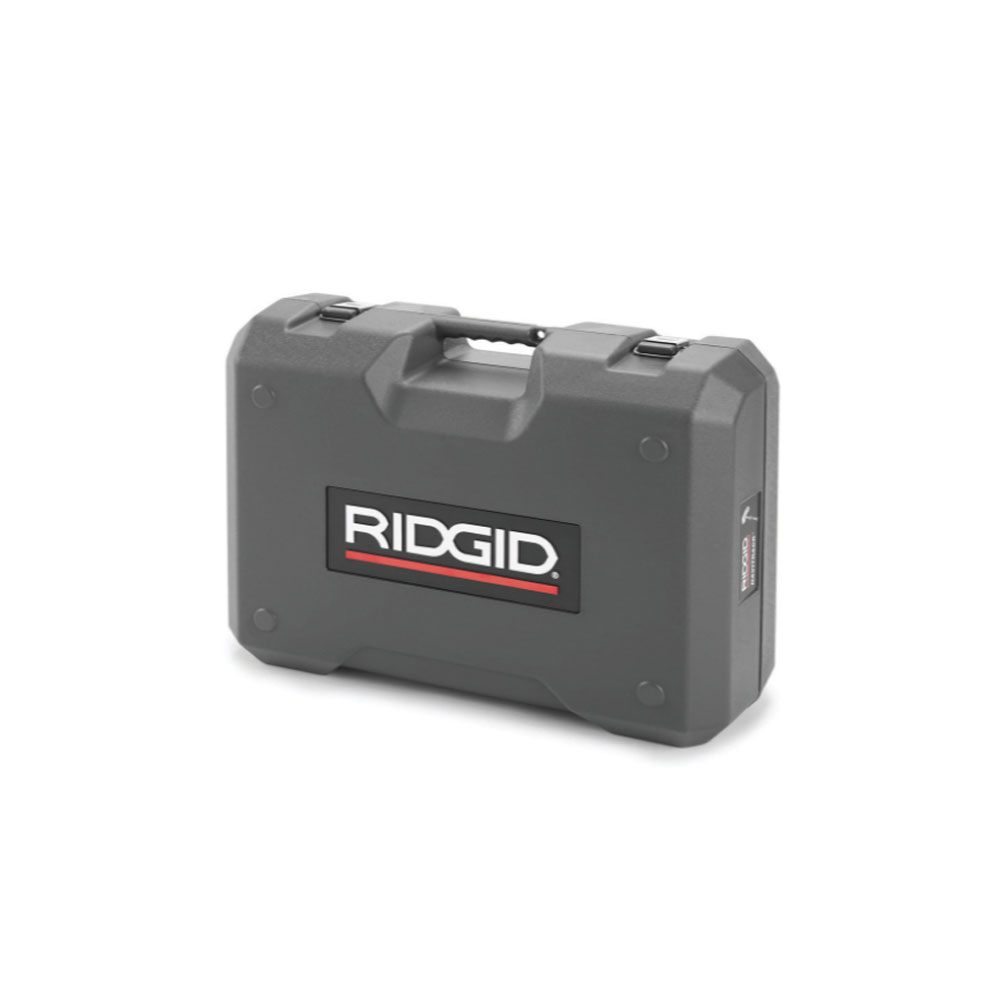

| 22388 | NaviTrack II Carrying Case | - | - |
- Locates SeeSnake in-line transmitters, remote transmitters (sondes), and energized metallic lines.
- Transmitters can be approached from any direction for faster, more accurate locates.
- Locates can be easily verified using the large mapping display.
- Continuous depth measurement.
- Brand: RIDGID

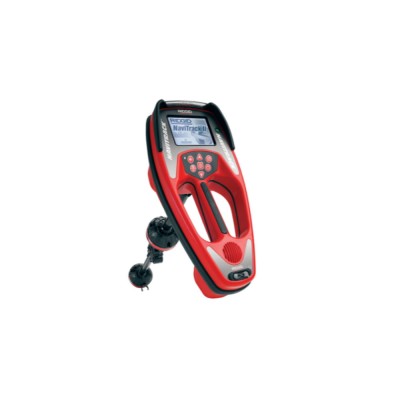

- Product Code: NaviTrack II Locator
- Catalog Number: 96967 - 13673 - 14818
- NaviTrack II locators provide unprecedented ease-of-use for locating underground pipes. NaviTrack II’s advanced technology greatly reduces training time. You can learn to locate with NaviTrack II in minutes.
