| Weight | 3 lbs (1.4 kg). | ||
| Power Source | 4 C-Cell batteries. | ||
| Battery Life | Approximately 24 hours. | ||
| STANDARD FREQUENCIES | |||
| Sonde | 16 Hz, 512 Hz, 640 Hz, 874 kHz and 33 kHz. | ||
| Line Trace | 128 Hz, 1 kHz, 8 kHz and 33 kHz. | ||
| Passive AC Line Trace | 60 Hz, 50 Hz. | ||
| Meets FCC Class B and EN 55022 Class B requirements. | |||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |
| LB. | KG | ||
| 19243 | NaviTrack Scout Locator | 3.00 | 1.4 |
| 19238 | NaviTrack Scout Locator | 3.00 | 1.4 |
|
ACCESSORIES
|
|||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |
| LB. | KG | ||
| 14818 | NaviTrack Line Transmitter | 7.50 | 3.40 |
| 16728 | Remote Transmitter, 512-AAA | 0.40 | 0.18 |
| 19793 | Float Sondes (2), Plus Extra Battery | 0.40 | 0.18 |
| 20168 | NaviTrack Brick Transmitter | 2.00 | 0.90 |
|
REPLACEMENT
PARTS
|
|||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |
| LB. | KG | ||
| 12543 | Marker Chips and Clip | - | - |
| 20248 | Scout Carrying Case | 6 1/4 | 2.80 |

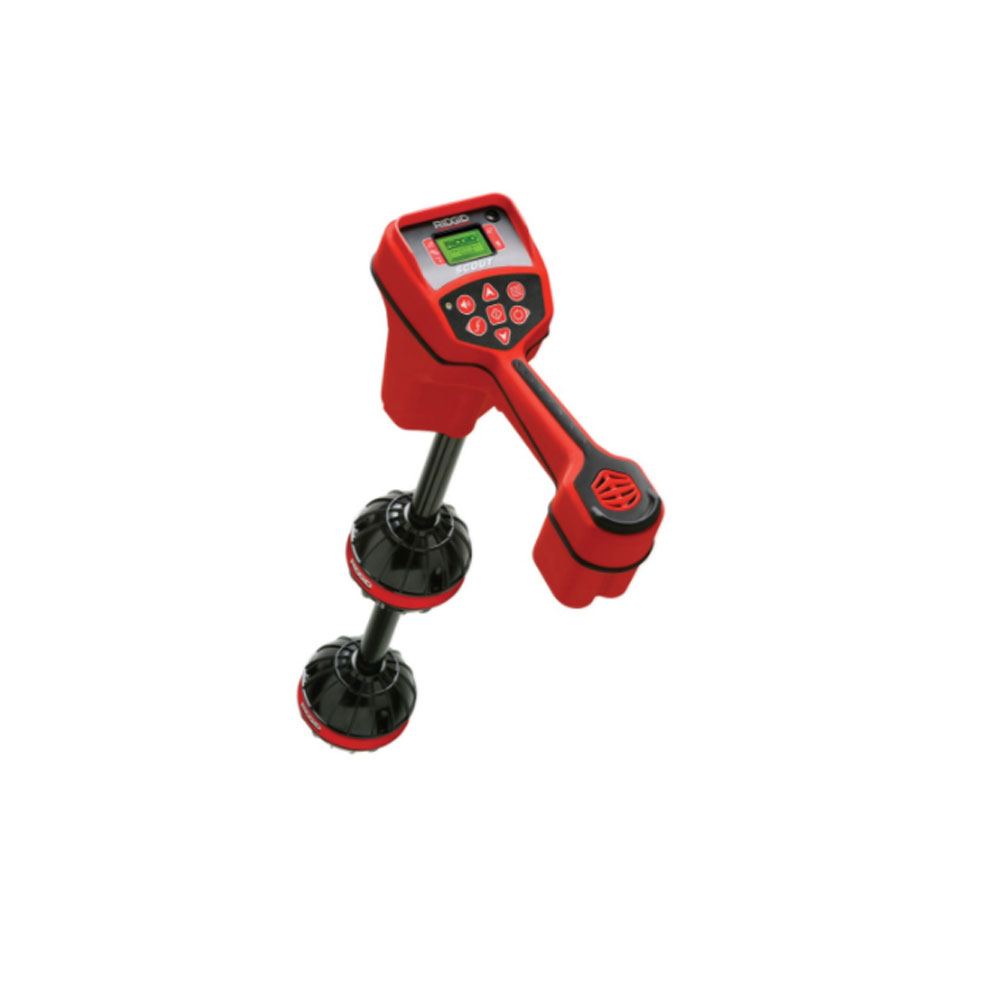

- The NaviTrack Scout Locator is designed to solve the most demanding remote transmitter (sonde) locates using multi-directional locating technology.
Easier Locates
- The NaviTrack Scout multi-directional antenna technology sees the entire signal all of the time. Simply maximize the signal strength and you have found the target.No nulls or false peaks to complicate the locate.
Accuracy
- This locator verifies the locate position using a micro-mapping display to mark distinctive poles in front of and behind the target, insuring an accurate locate.
Automatic Depth
- Depth is automatically calculated and displayed when over the target.
- Brand: RIDGID
- Product Code: NaviTrack Scout Locator
- Catalog Number: 19243 - 19238 - 14818
- The NaviTrack Scout Locator is designed to solve the most demanding remote transmitter (sonde) locates using multi-directional locating technology.
