| Active Line Trace Frequencies * | 128 Hz, 1 kHz, 8 kHz and 33 kHz. | ||
| Passive Power Trace | 50 Hz, 60 Hz, <4 kHz Broadband. | ||
| Passive Radio Trace | 4 kHz-15 kHz, 15 kHz-36 kHz. | ||
| Sonde Frequencies * | 16 Hz, 512 Hz, 640 Hz, 850 Hz, 8 kHz, 16 kHz, 33 kHz. | ||
| Power Source | 4 C-Cell batteries. | ||
| Battery Life | Approximately 16 hours. | ||
| Weight | 3.5 lbs. (1.6 kg). | ||
| Meets FCC Class A and EN 55022 Class A requirements. | |||
| * 30 user definable frequencies can be set from 10 Hz to 35 kHz. | |||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |
| LB. | KG | ||
| 21893 | SeekTech SR-20 Line Locator | 4.0 | 1.8 |
| 46918 | KIT: SR-20 + ST305 + 4” CLAMP | 8.5 | 3.8 |
|
ACCESSORIES
|
|||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |
| LB. | KG | ||
| 20973 | SeekTech 4” (100 mm) Inductive Signal Clamp | 2.00 | 0.90 |
| 21898 | SeekTech ST-305 Transmitter | 2.50 | 1.90 |
|
REPLACEMENT
PARTS
|
|||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |
| LB. | KG | ||

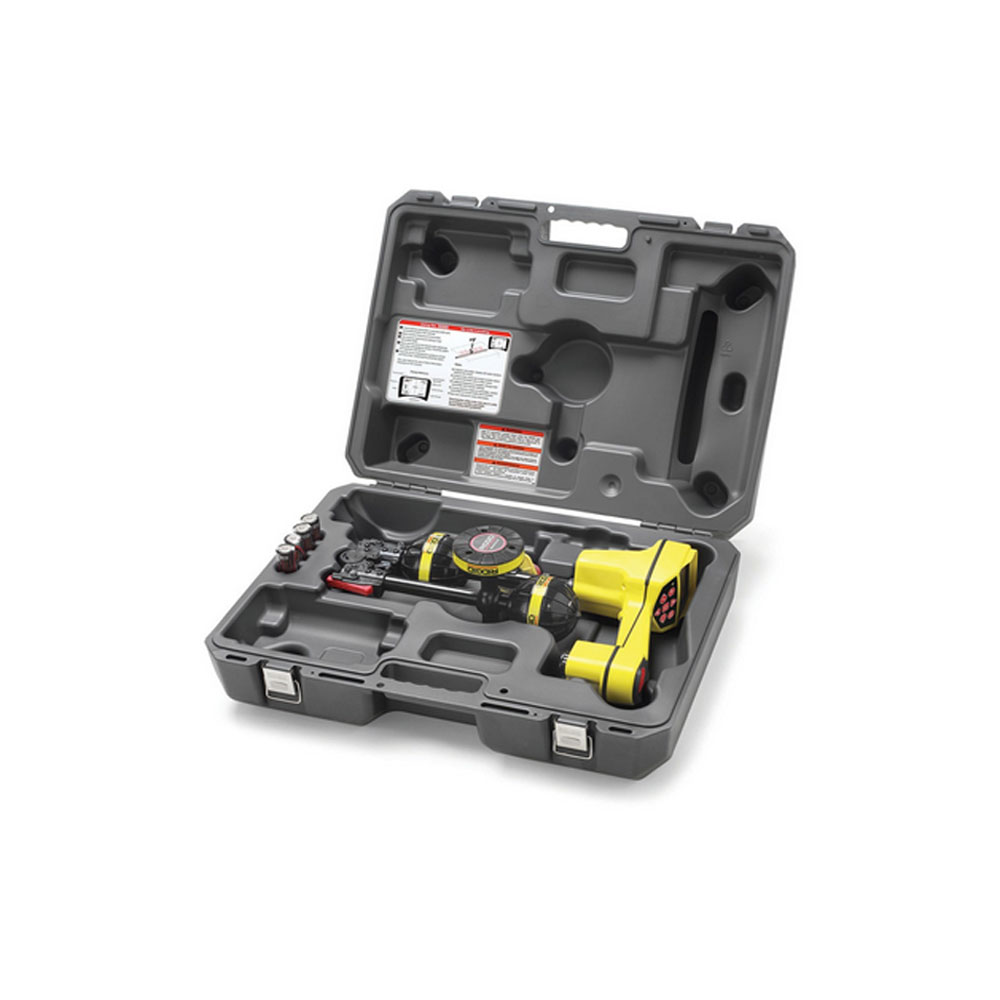

| 22173 | SR-20/SR-24 Case | 5 | 2.2 |
- Target line and guidance arrows quickly identify distortion
- Proximity signal and signal strength help work through difficult locates
- Trace any frequency from 10 Hz to 35 kHz
- Brand: RIDGID
- Product Code: SR-20 LINE LOCATOR
- Catalog Number: 21893 - 46918 - 20973 - 21898

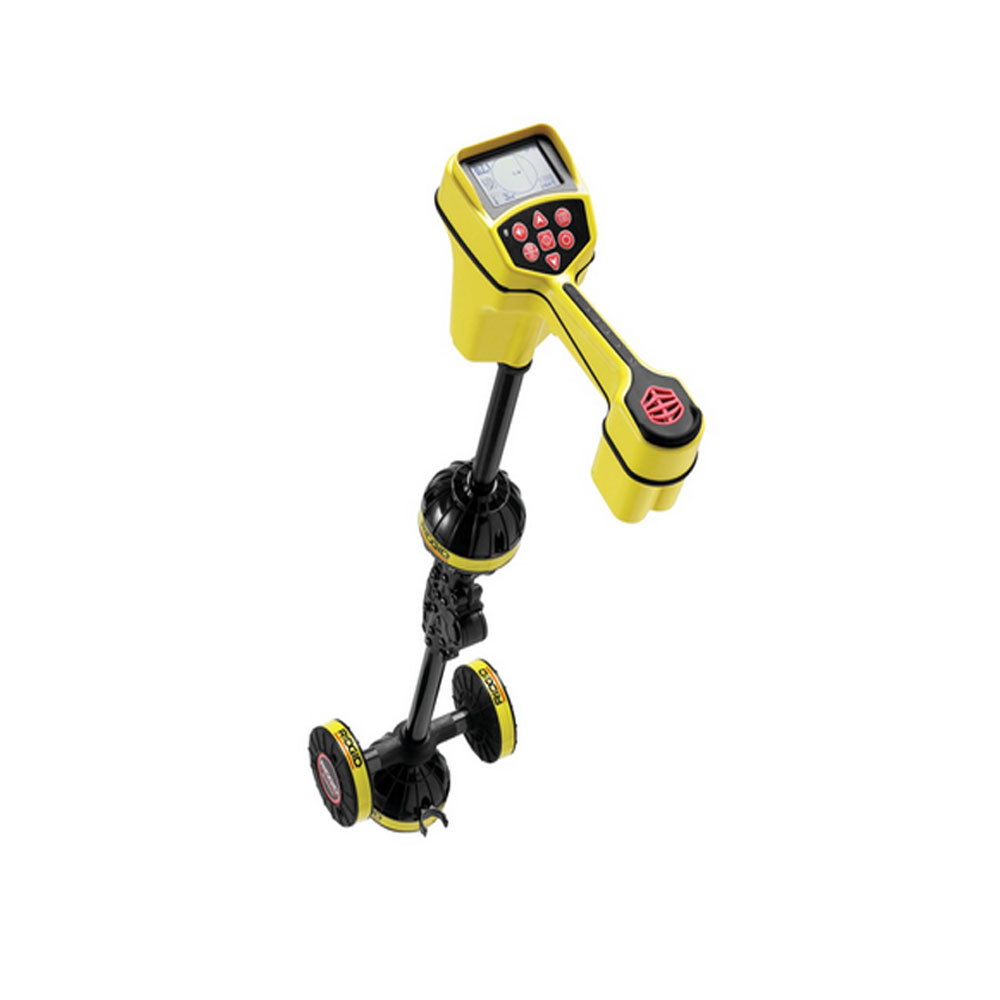

A lightweight yet rugged receiver that provides all the information needed for faster more accurate locates
