| Active Line Trace Frequencies* | 128 Hz, 1 kHz, 8 kHz, 33 kHz, 51 kHz, 93 kHz, 200 kHz, 262 kHz.** | ||
| Passive Power Trace | 50 Hz, 60 Hz, <4 kHz Broadband. | ||
| Passive Radio Trace | 4 kHz-15 kHz, 15 kHz-36 kHz. | ||
| Sonde Frequencies * | 16 Hz, 512 Hz, 640 Hz, 850 Hz, 8 kHz, 16 kHz, 33 kHz. | ||
| Power Source | 4 C-Cell batteries (included). | ||
| Battery Life | Approximately 16 hours. | ||
| Weight | 5.1 lbs. (2.3 kg). | ||
| Meets FCC Class A and EN 55022 Class A requirements. | |||
| *30 user definable frequencies can be set from 10 Hz to 490 kHz. | |||
| ** Up to 93 kHz for devices sold in Europe. | |||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |
| LB. | KG | ||

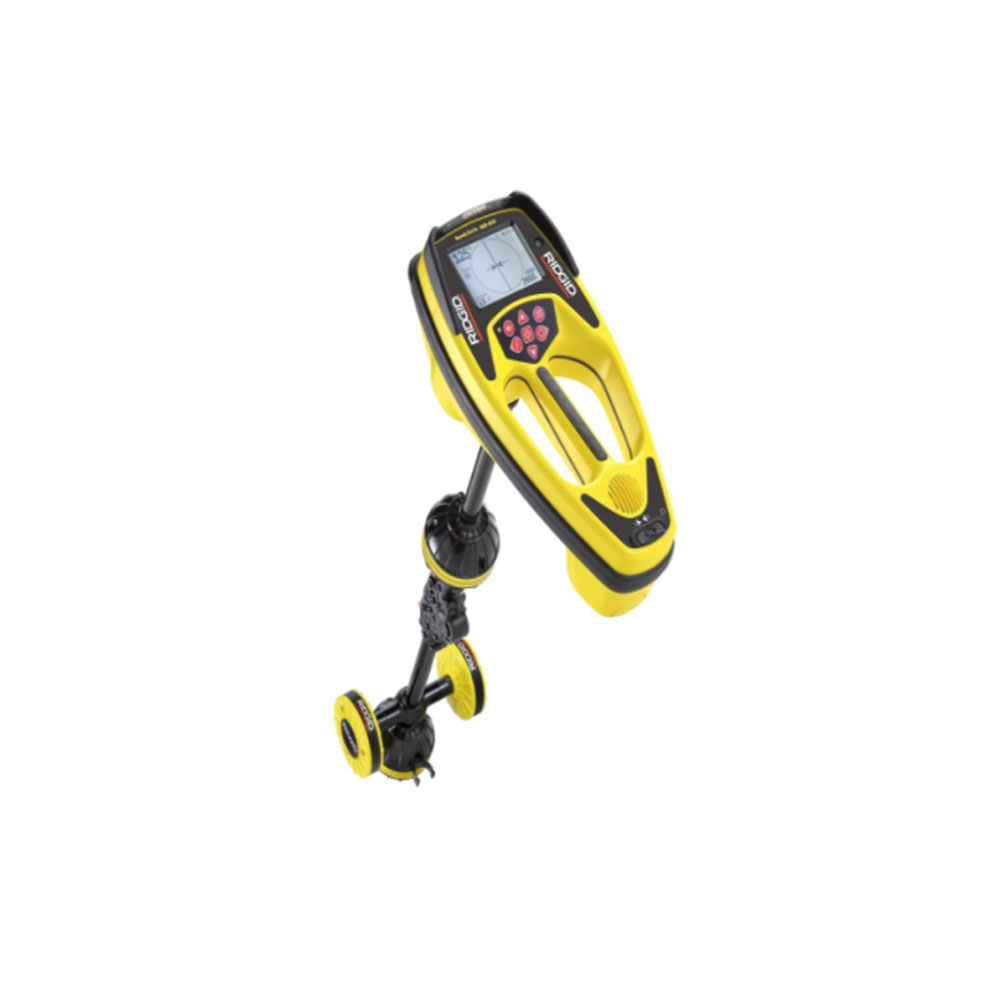

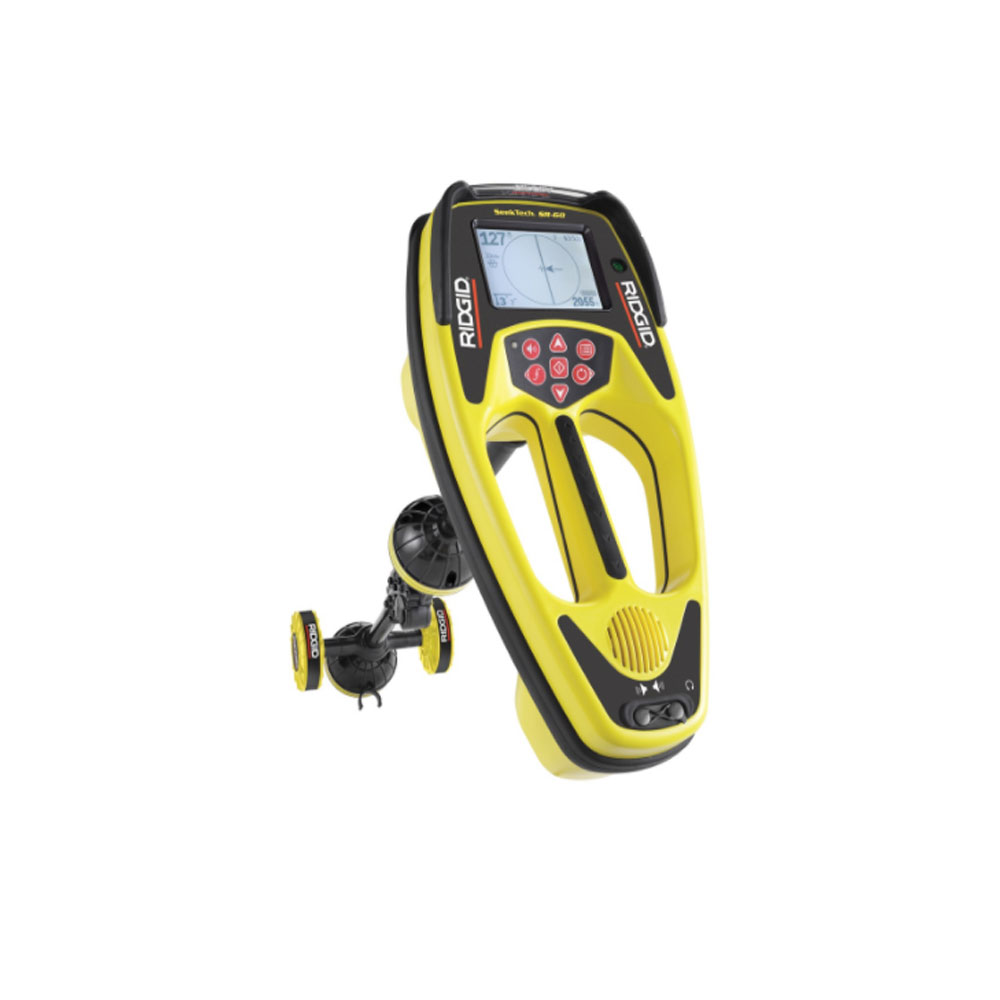

| 22163 | SeekTech SR-60 Line Locator | 5.1 | 2.3 |
|
ACCESSORIES
|
|||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |
| LB. | KG | ||
| 20973 | SeekTech 4” (100 mm) Inductive Signal Clamp | 2.0 | 0.9 |
| 21898 | SeekTech ST-305 Transmitter | 2.5 | 1.9 |
| 49343 | ST-33Q+ Line Transmitter with Bluetooth | 11.1 | 5.0 |
|
REPLACEMENT
PARTS
|
|||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | |
| LB. | KG | ||
| 29798 | SR-60 Case | 5 | 2.20 |
Versatility
- Trace any frequency from 10 Hz to 490 kHz.
- Trace energized lines and sondes (beacons) simultaneously.
- Has all the ease of use and accuracy of the SR-20 but with ALL locatable frequencies.
- Brand: RIDGID
- Product Code: SR-60
- Catalog Number: 22163 - 20973 - 21898
- For the fastest, easiest, most versatile receiver available. Choose the SR-60 locator for fast confident locates even under tough locate conditions (poor conductors, poor soil conditions, poor grounding, etc.).
