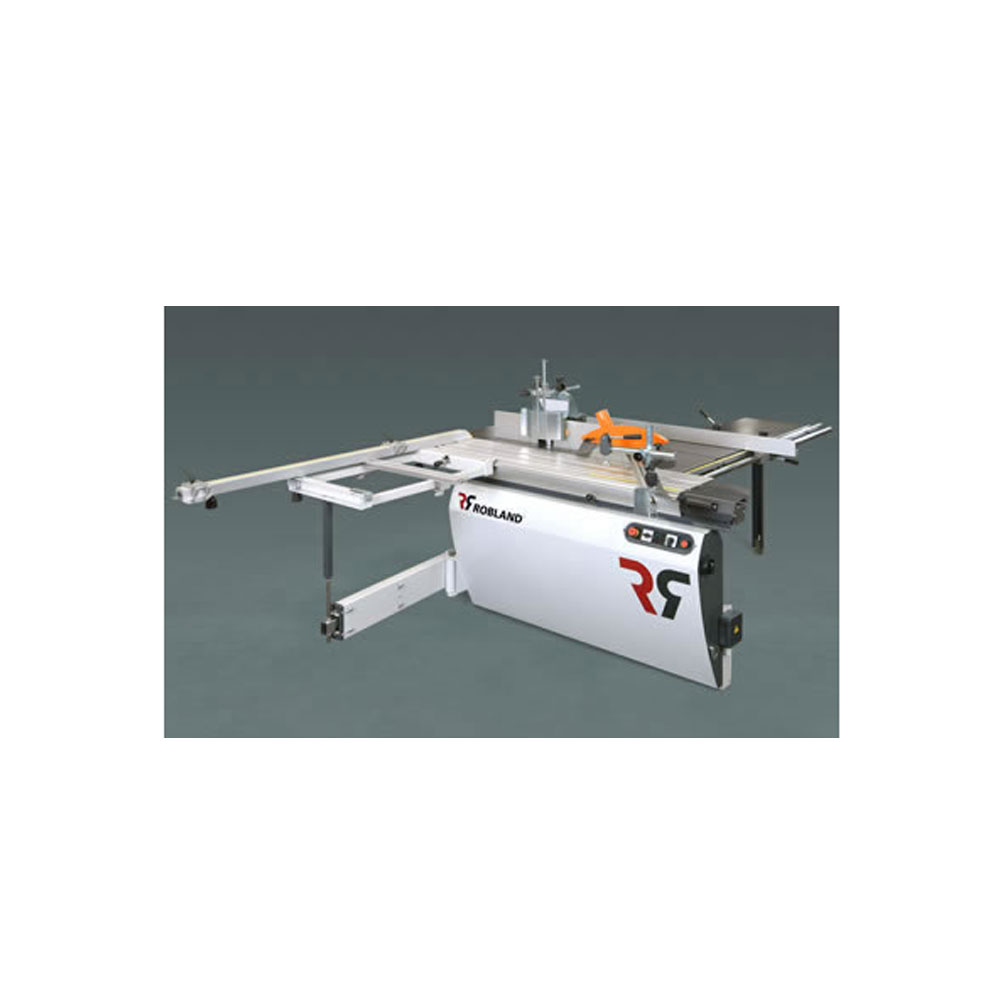

Combined machine NLXTZ Pro

  • Combined machine NLXTZ Pro
  • Woodclamp
    The mitre fence and stop on the sliding table is equipped with an excentric woodclamp. Exact angles can be set and secured.
  • Handwheel
    Handwheel with integrated analogue read out for height spindle moulder.
  • Sliding table
    Very easy to operate, well dimensioned 310 mm wide sliding table, 140 mm wide lower beam. The result of all this clever design is the very high quality of cut from the saw.
  • Support table
    Cast iron power feed “fold away” support table. No need to take the power feed off each time the saw is used.
  • Spindle arbor
    4-speed spindle arbor with speeds 2900/4000/6000/7500.
  • Scoring unit
    Scoring unit with a diameter of 120 x 20 mm.
  • Tenoning table
    The heavy duty tenoning table enables you to execute in all safety all tenoning work.
  • Safety hood
    Safety hood for tenoning with diameter capacity 260mm.
  • Parallel saw fence
    Parallel saw fence, cutting width 1270 mm
  • Spindle arbor
    Standard spindle diameter is 30 mm , the working length is 120 mm. The up-and down stroke is 140 mm.
  • Support table
    The extra support table on the sliding table offers the possibility of machining big panels.
  • Ring guard fence
    The ring guard fence is ideal to make pieces with different bow shapes. By using a mold, it’s possible to shape the wood by gliding against the ring guard al around the spindle.
  • Safety pack
    The safety pack includes a key on the emergency button and a Suva saw guard, for a great dustcollection and a visible sawcut
  • Digital read out
    Digital read-outs on the crosscut fence
  • Digital read out parallel fence
    Digital read out parallel fence
  • Heavy duty fence
    Heavy duty fence on the spindle with oaking point. Perfect to re-use the regelations. The woodpusher is see-through for even safer work
