| Punching | |||
| Punching Pressure | 50 Ton | ||
| Punch Capacity | ø20 x 18 | ||
| (Diameter x Thickness) | Ø40 x 9 | ||
| Throat Depth S: | 180 | ||
| Channel Flange Punch (Height) | 180 | ||
| Max. Stroke Length | 42 | ||
| Cycles / Min. (20mm stroke) | 24 | ||
| Working Height Up to Die | 840 | ||
| Flat Shearing | |||
| Flat Bar Shearing | 300 x 12 | ||
| (Width x Thickness) | 200x 18 | ||
| Blade Length | 310 | ||
| Angle Flange Trim | 100 | ||
| Working Height | 1150 | ||
| Angle Shearing | |||
| At 90° Shearing | 100x 100 x 10 | ||
| At 45° Miter Shearing | 65 x 65 x 8 | ||
| Working Height | 850 | ||
| Bar Shearing | |||
| Round Bar Shear | Ø32 | ||
| Square Bar Shear | 30x30 | ||
| Channel Shear | 76 | ||
| I Beams Shear | 76 | ||
| Working Height | 880 | ||
| Notching | |||
| Rectangular Notcher (WxDxT) | 50.8 x 90 x 7 | ||
| Vee-Notcher (Side x Side x T) | 90 x 90 x 8 | ||
| Working Height | 1150 | ||
| Special Tooling | |||
| Single Vee Press Brake (W x T) | 160x10 | ||
| Multi Vee Press Brake(W x T) | 250x6 | ||
| Angle Bending | 65 x 8 | ||
| Pipe Notching | Ø50 | ||
| Other | |||
| Electric Power (HP) | 5HP | ||
| Net Weight (Apr.) | 1130KG | ||
| Gross Weight (Apr.) | 1250 KG | ||
| Machine Dimension(Apr.) (L x W x H) | 1310x770x1450 | ||
| Packing Dimension(Apr.) (L x W x H) | 1580x930x1730 | ||

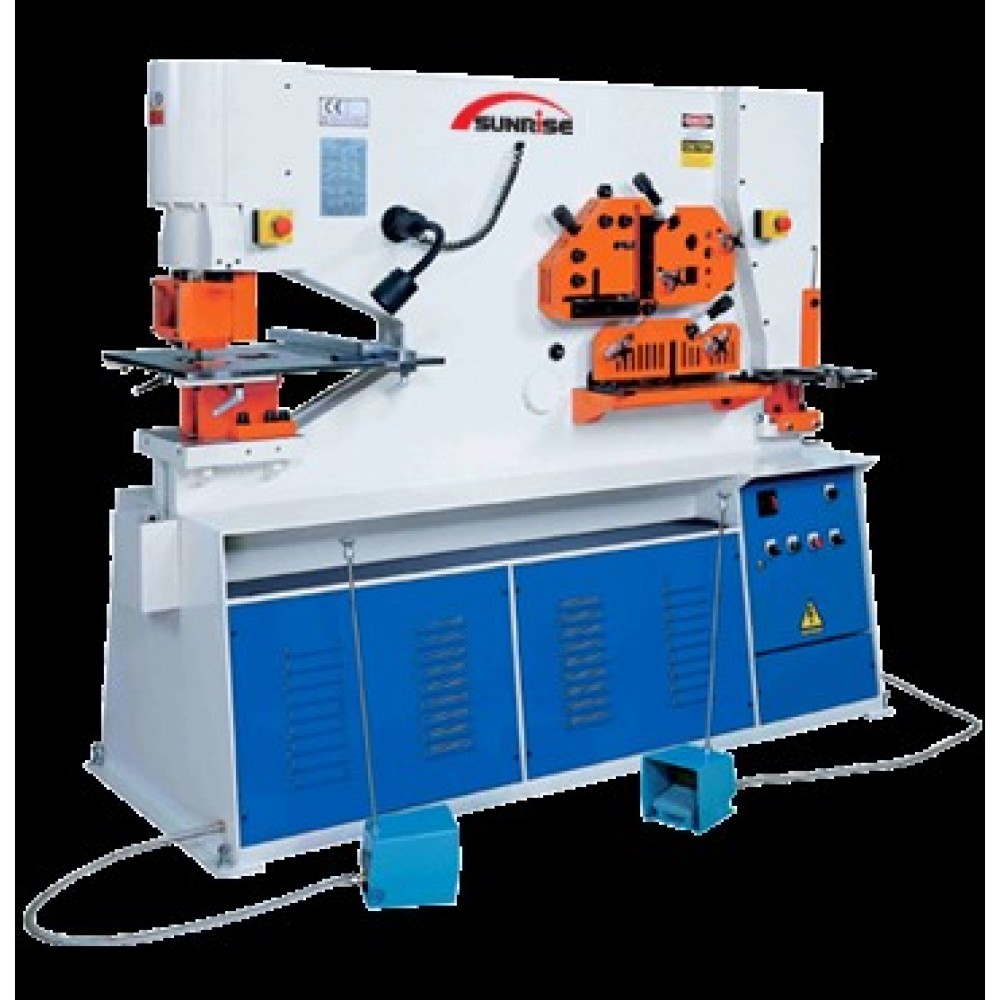

The IW-50A features a vertical moving ram at the
punching station for improved punching performance, and enables the use of
optional tooling such as pipe notching and bending tools. The square/ round bar
shear is a stand-along station with possibility of optional channel shear and
section bar shear tooling. This model also features lower angle shearing and bar
shearing stations.
- Brand: SUNRISE
- Product Code: IW-50-A
The IW-50A features a vertical moving ram at the
punching station for improved punching performance, and enables the use of
optional tooling such as pipe notching and bending tools.
