AM 70

  • AM 70
SharpeningSpeed[teeth / minute]:  54
Setting Band saw Blades
Band saw Thickness [min-max]:  0.5 – 1 mm
Band saw Width [min-max]: 10 – 45 mm
Setting Pitch [min-max]:  5 – 25 mm
Setting Speed [teeth / minute]:   107 – 162mm
General Characteristic
Motors Power:  n° 2 x 0.18 kW
Motors Power:  n° 1 x 0.25 kW
Motors Power:  n° 1 x 0.25 kW
Wheel Grinder Dim. [ Ø Ext x Int x Thickness]:150 x 20 x 6 mm
 Net-Gross Weight: 102 – 159 kg
Machine Dimensions [D x W x H]:  70 x 90 x + 260 cm

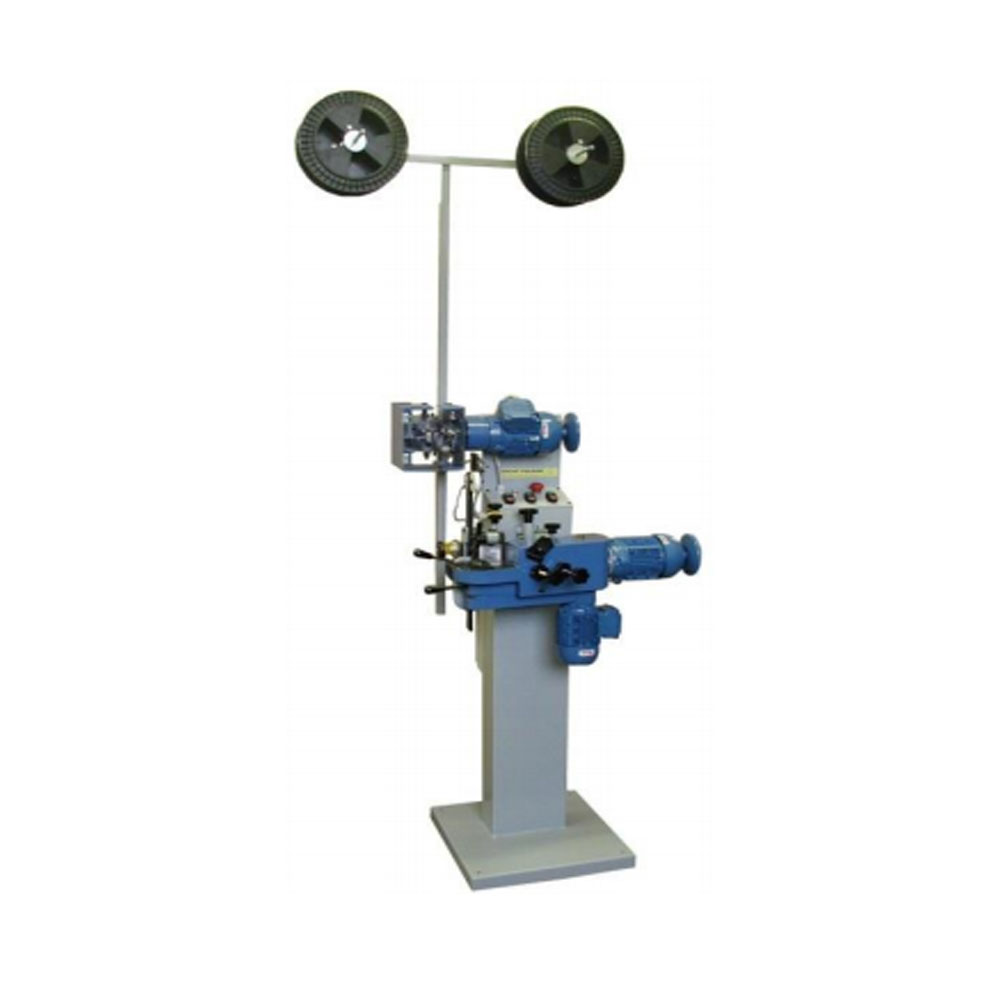

  • Sharpening machine with setting machine. Automatic work cycle. Can sharpen band saw and circular saw blades and set band saw blades only. Can sharpen all triangular profiles even those which have some space between teeth. Possibility to choose the type of sharpening: tooth front only or front and back. Allowing the independent adjustments of the feed pitch, of the grinding wheel working depth and of the entry/exit speed. Its vertical design was studied to require little space and bear high workloads. Solid and reliable. Provided with rod and roller to support saw blades to be sharpened.



Write a review

Note: HTML is not translated!
    Bad           Good
  • Brand:
  • Viscat Fulgor

  • Product Code:
  • AM 70
    • Sharpening machine with setting machine. Automatic work cycle. Can sharpen band saw and circular saw blades and set band saw blades only.
