TL 60 W

  • TL 60 W
Sharpening Bandsaw Blades
Teeth Profile:Woodmizer
Bandsaw Thickness [min-max]:  0.5 – 1.5 mm
Bandsaw Width [min-max]:  10 – 60 mm
Sharpening Pitch [min-max]:  16 – 25 mm
Sharpening Speed [teeth / minute]:  23
Setting Bandsaw Blades
Bandsaw Thickness [min-max]:  0.5 – 1 mm
Bandsaw Width [min-max]:  10 – 45 mm
Setting Pitch [min-max]:  5 – 25 mm
Setting Speed [denti/minuto]:  14 – 20
Characteristic
Motors Power:  n° 2 x 0.18 kW
Motors Power:  n° 1 x 0.09 kW
Wheel Grinder Dim. [ (Ø Ext x Int) x Thickness]: (150 x 20) x 6 mm
 Net – Gross Weight:  68 – 125 kg
Machine Dimensions [D x W x H]:  70 x 82 x + 260 cm
Packing Dimensions [D x W x H]:  81 x 99 x 172 cm

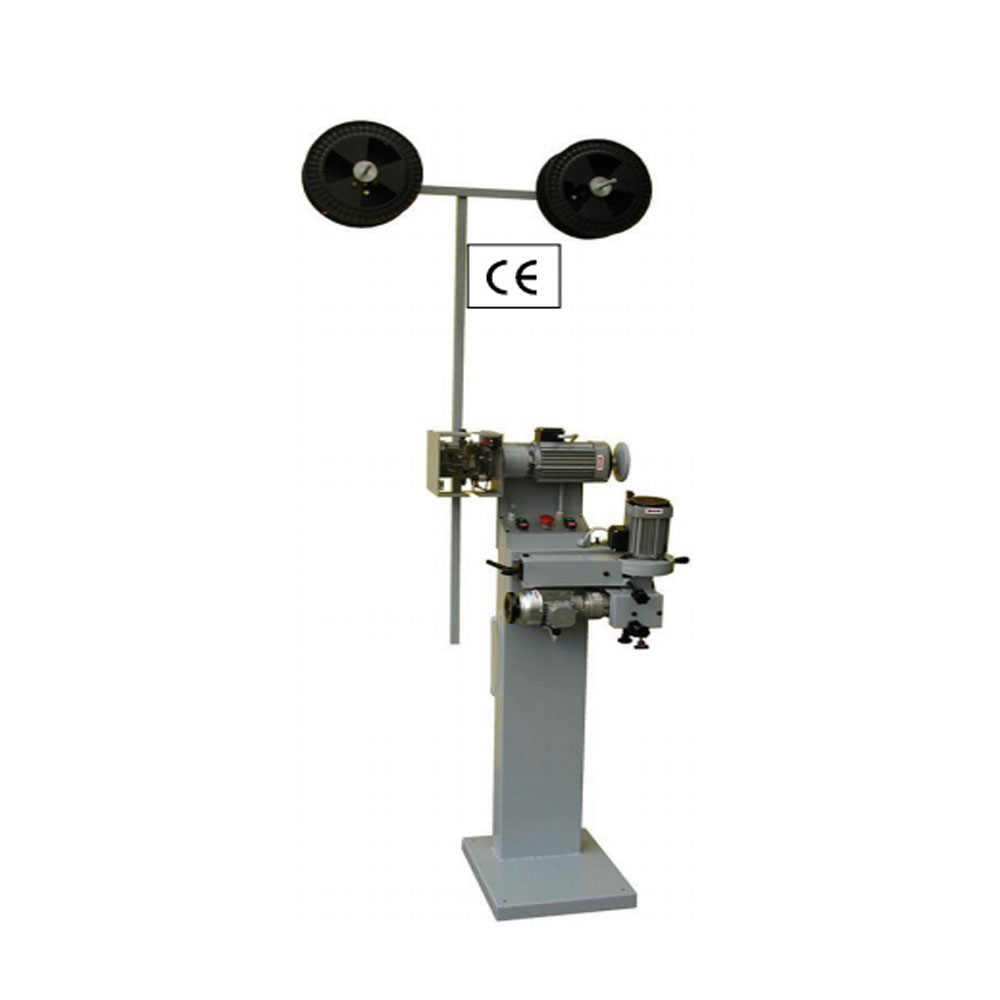

  • Sharpening machine with setting machine. Inexpensive model. Automatic work cycle. Can sharpen Wood-Mizer profiles types.  Allowing the independent adjustment of the feed pitch and combined adjustment of: working depth and entry/exit speed. Its vertical design, too requires little space.  Provided with rod and roller to support saw blades to be sharpened.

Write a review

Note: HTML is not translated!
    Bad           Good
  • Brand:
  • Viscat Fulgor

  • Product Code:
  • TL 60 W
    • Sharpening machine with setting machine. Inexpensive model. Automatic work cycle. Can sharpen Wood-Mizer profiles types.
