AIM 4410 - 4 AXES ALUMINIUM PROFILE PROCESSING CENTER

  • AIM 4410 - 4 AXES ALUMINIUM PROFILE PROCESSING CENTER
15kW
3.000RPM
D:180 mm d: 30mm
6 Bar
250 lt/min
Ømax: 63 mm.
W= 2.050 H= 2.200 L = 6.250
3.55
3.2
  • CNC automation system providing motion control at 4-axis
  • 2 x separate magazine unit for 12 standard tools and 1 for saw blade with 180 mm dia.
  • Solid steel construction of the body and dynamic performance gantry
  • Automatic clamp recognition and clamp positioning are available
  • Tapping feature up to M8
  • Special sound insulation cabinet around the machining center
  • CNC controlled spray tool lubrication system
  • 4 x automatic clamps used for grabbing the work piece firmly
  • 2 x pneumatic rests used for resetting the work piece in X direction
  • Hand held controller allows you to prove the job before running at speed
  • Optimum safety barier
  • 10’’ color touch screen
  • Program import via USB flash memory stick
  • Standard ISO ‘G’ code programming language
  • Automatic central guide lubrication system
  • LED lighting in the cabinet
  • Multi-language support

Optional

  • Work station PC for CAM applications
  • Compensation chuck (up to M8 tapping)
  • Tool length measurement kit
  • Chip removal conveyor belt
  • Tool car
  • Additional clamps
  • Saw blade, tools, tool holder and collets
  • Covering sound insulation material inside the cabinet

Machine is produced with steel profiles and sheet, and designed for the agronomy that allows operator easy installation of work pieces by hand.

Metal parts are painted with Electrostatic Powder Paint which provides resistance against corrosion. Front section of machine is covered with moving door with transparent plexiglass windows so that operator can easily follow the machining process of work piece. This door also provides safety for operator.







Write a review

Note: HTML is not translated!
    Bad           Good
  • Brand:
  • YILMAZ

  • Product Code:
  • AIM 4410

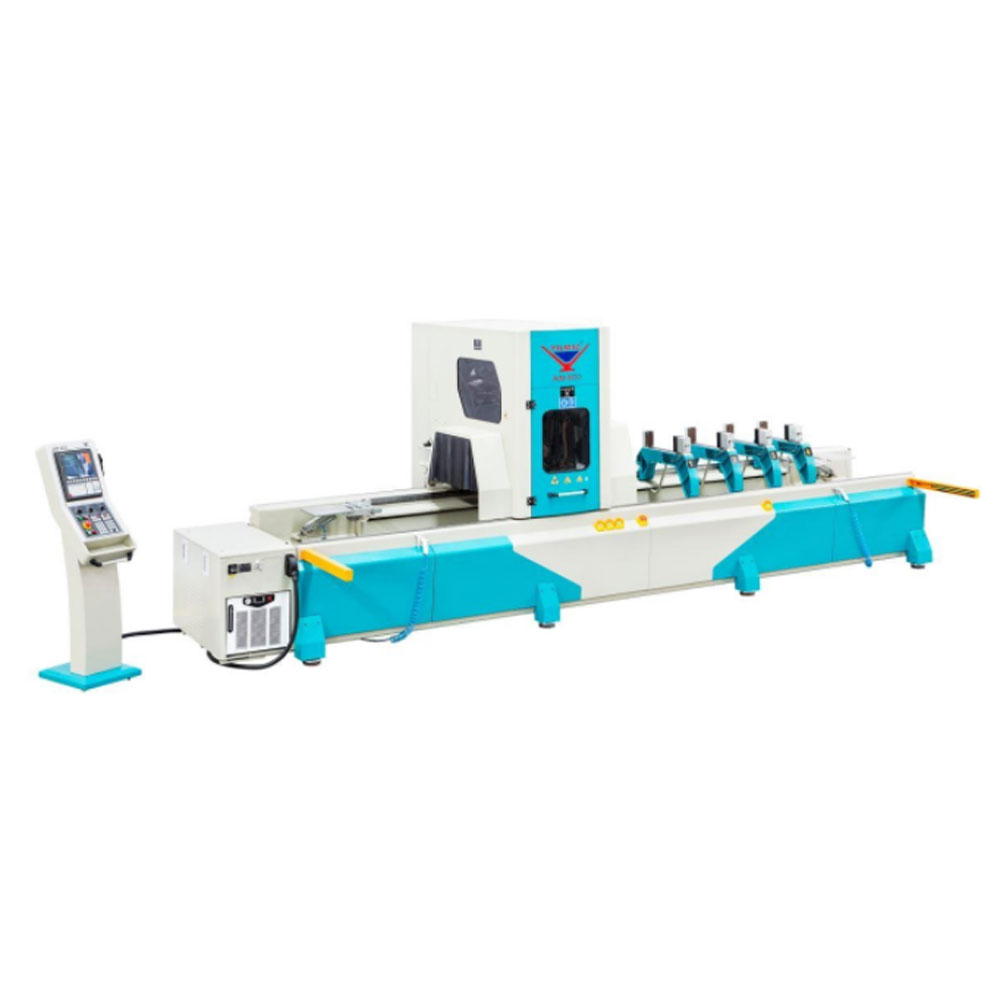

    AIM 4410 is 4-axis servo controlled machining center which is designed to perform drilling, grooving, notching, taping, saw milling, etc. on all kinds of aluminum & PVC profiles, light alloys in general and thin walled steel profiles.
