AIM 7510 - 5 AXES ALUMINIUM PROFILE PROCESSING CENTER

  • AIM 7510 - 5 AXES ALUMINIUM PROFILE PROCESSING CENTER
15 kW
3000 RPM
D=350 mm. d=30 mm.
8 BAR
7 lt./ min.
Ømax: 63 mm.
W= 2365 H= 2255 L = 9065
  • CNC automation system providing motion control at 5-axis
  • Uninterrupted machining property by means of the tandem mode to prevent waste of time
  • Easy to programm with user-friendly CAMPROX CAM
  • 2 x separate magazine unit for 12 standard tools and 1 for saw blade with 350 mm dia.
  • Solid steel construction of the body and dynamic performance gantry
  • Automatic clamp recognition and clamp positioning are available
  • Special sound insulation cabinet around the machining center
  • CNC controlled spray tool lubrication system
  • 8 x automatic clamps used for grabbing the work piece firmly
  • 2 x pneumatic rests used for resetting the work piece in X direction
  • Hand held controller allows you to prove the job before running at speed
  • Optimum operational safety guaranteed by 3-zone field scanner system
  • 10’’ color touch screen
  • Program import via USB flash memory stick
  • Standard ISO ‘G’ code programming language
  • Automatic central guide lubrication system
  • LED lighting in the cabinet
  • Multi-language support

  • OPTIONAL

  • Work station PC for CAM applications
  • Compensation chuck (up to M8)
  • Tool length measurement kit
  • Chip removal conveyor belt
  • Tool car
  • Additional clamps
  • Saw blade, tools, tool holder and collets
  • Covering sound insulation material inside the cabinet



Write a review

Note: HTML is not translated!
    Bad           Good
  • Brand:
  • YILMAZ

  • Product Code:
  • AIM 7510

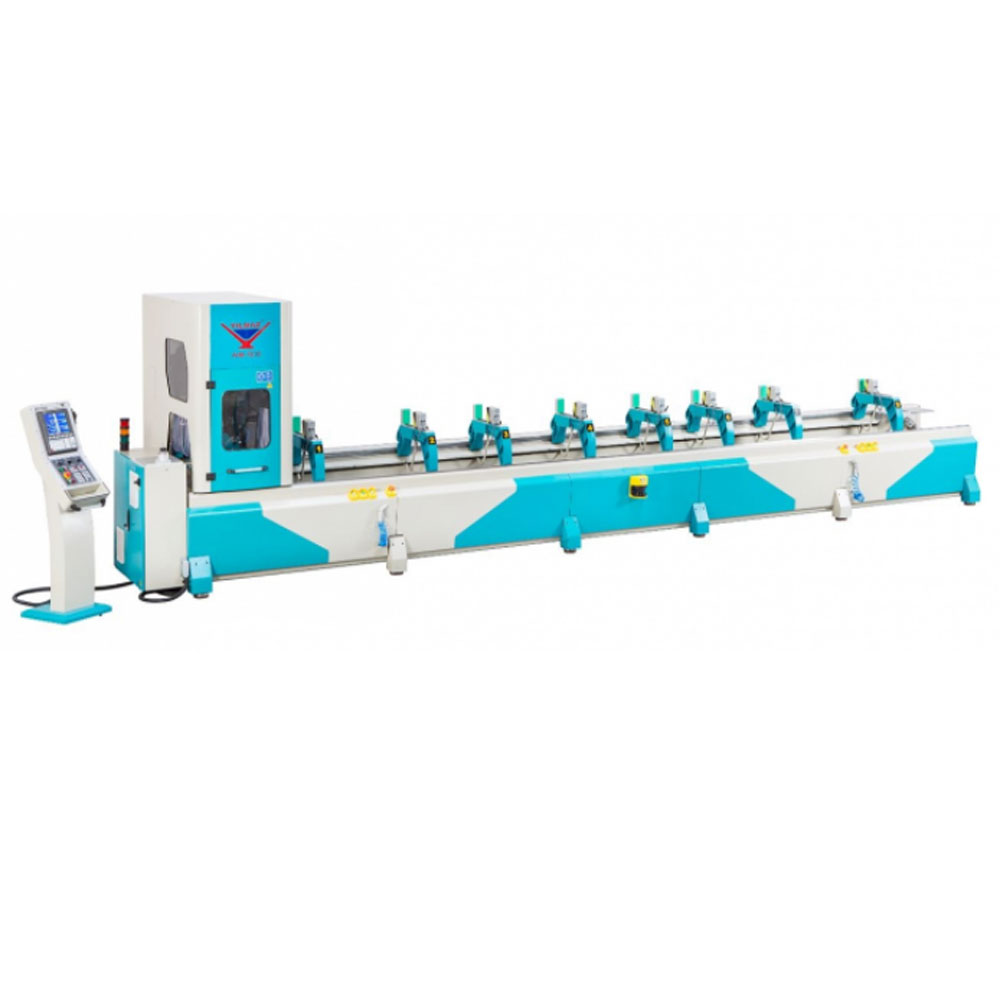

    AIM 7510 is 5-axis servo controlled machining center which is designed to perform drilling, grooving, notching, taping, saw milling, etc. on all kinds of aluminum & PVC profiles, light alloys in general and thin walled steel profiles.
