| 5.3 kW 50~60Hz |
| 400V AC 3P N PE |
| 3000 D/dak RPM |
| max D: 250 d:30/32 mm. |
| 6~8 Bar |
| 132 Lt/dak |
| 103 x 198x 197 cm |
| 1245 kg |
| 1120 kg |
| max h 170 min h 30 max b 130 min b 30 mm |
| min h 400 min b 400 mm |
- After welding, operator or Robot
mechanism (SA 260) automatically takes
the frame from the place where the
cleaning process start and carry out the
cleaning of the flashes by means of the
spinning mechanism - Zero and standard welding can be selected
from the screen - All units parameters can be set inde
pendently according to the frames - Automatic frame and sash profile
recognition system - Automatic line can be made by combining
with Four Corner Welding Mach.(DK 540),
Cooling Unit (SA 250) and Rotating Robot
(SA 260) at a later date - Eliminate the flashes on the lower and
up per surfaces by two independently
operated cleaning units (CNC 610) - Memory capacity of 6500 profiles
- Windows based industrial PC and 15’’ LCD
touch screen color monitor - Remote connection via internet and pro
viding technical support - Manual adjustment of cutting and axial
speeds on the control panel - Transferring facility of the new programs
via USB - Portable touch screen control panel
- Low pressure control valve
- Automatic central lubrication system
- Phase control equipment
- 11 pcs. of tooling units such as milling
cutters and saw blades are included in
standard equipment - Processing capacity with 200-270 window
frames in 8 hours
- Brand: YILMAZ

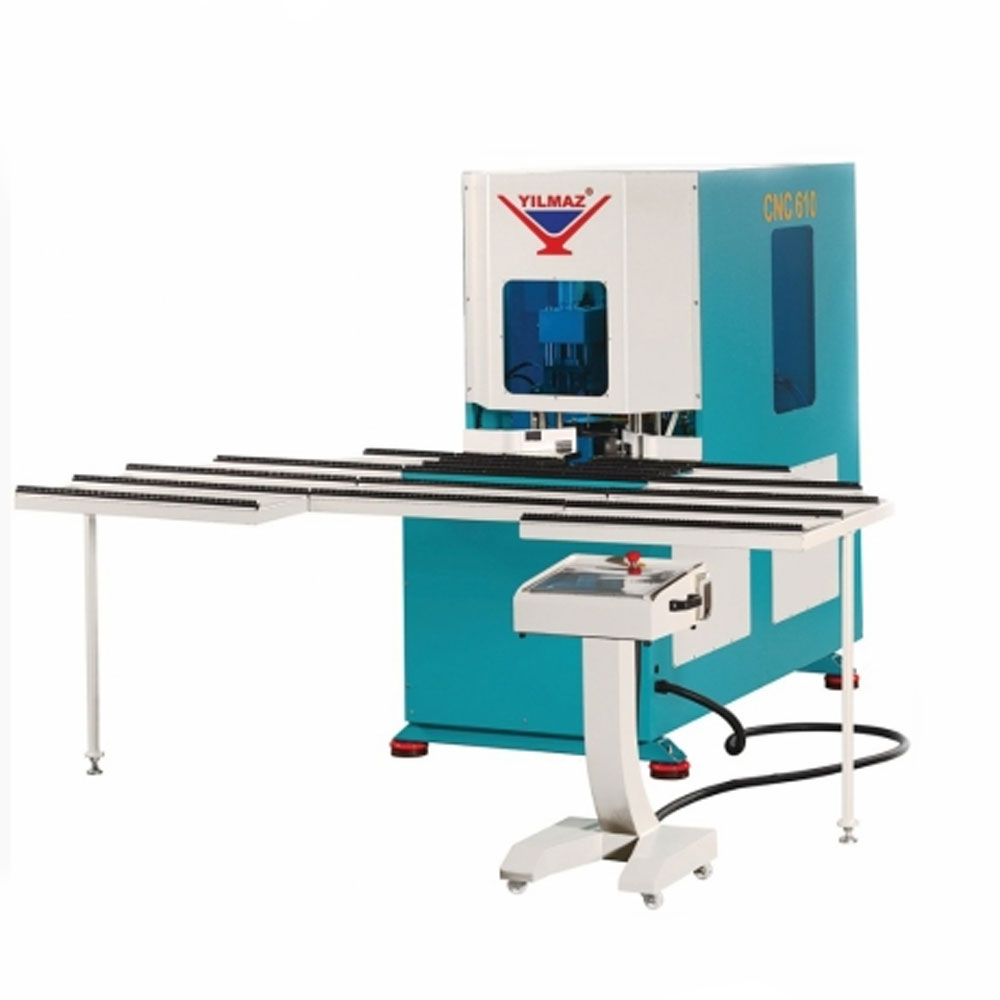

- Product Code: CNC 610
Corner Cleaning Machines are designed for the cleaning of welding chips of PVC profiles that is welded at angle of 90°. CNC 608: 2 x servo drive motors, CNC 610: 4 x servo motor drives.
