| 2.2 KWx2 50/60 Hz |
| 400V AC 3P N PE |
| 3.000 D/dak RPM |
| D: 420 d: 30/32mm. |
| 45 Lt/dak. |
| 6/8 Bar |
| 116x 501x 170cm |
| 1.346 kg. |
|
1.086 kg.
|
- Two-hand safety operation
- Manual adjustment of intermediate tilting
angles from 90° to 45° inwards - Tilting automatically 90° and 45° inwards
both angles - Location points at 45°-30°-22.5°-15°-90°
inwards - Automatic slicing feature at 90°
- Hydro-pneumatic saw blade feed
- Cutting accuracy +/- 0.2 mm
- Solid steel construction of the body
- Automatically closing safety guards
- Windows based industrial PC and 15’’ LCD
touch screen color monitor - Facility to transfer the cutting list in ‘mdb’
format via USB and network - Automatic changeover mode from cut to
cut without any operator input - Technical support via remote connection
capability - Barcode printer & image print
STANDARD ACCESSORIES
- Ø 420 mm of saw blade
- Roller conveyor & 2 x profile supports
- Barcode printer
- 4 x horizontal clamps
- Air gun
OPTIONAL ACCESSORIES
- Machine with the length of 5m and 6m
- Chip vacuum extractor & accessories
- Chip removal conveyor belt
- Spray saw blade lubrication system
- 2 x vertical clams
- Brand: YILMAZ
- Product Code: DC 421 PBS

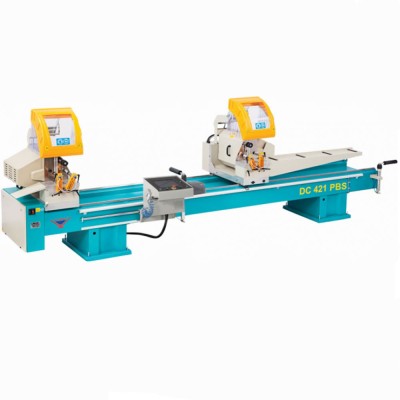

DC 421 PBS is a full automatic sawing machine which is designed for the strait or angular cutting operations of large size of profiles made of PVC and aluminum materials by means of double head sawing units equipped
with Ø 420 mm of saw blades .
