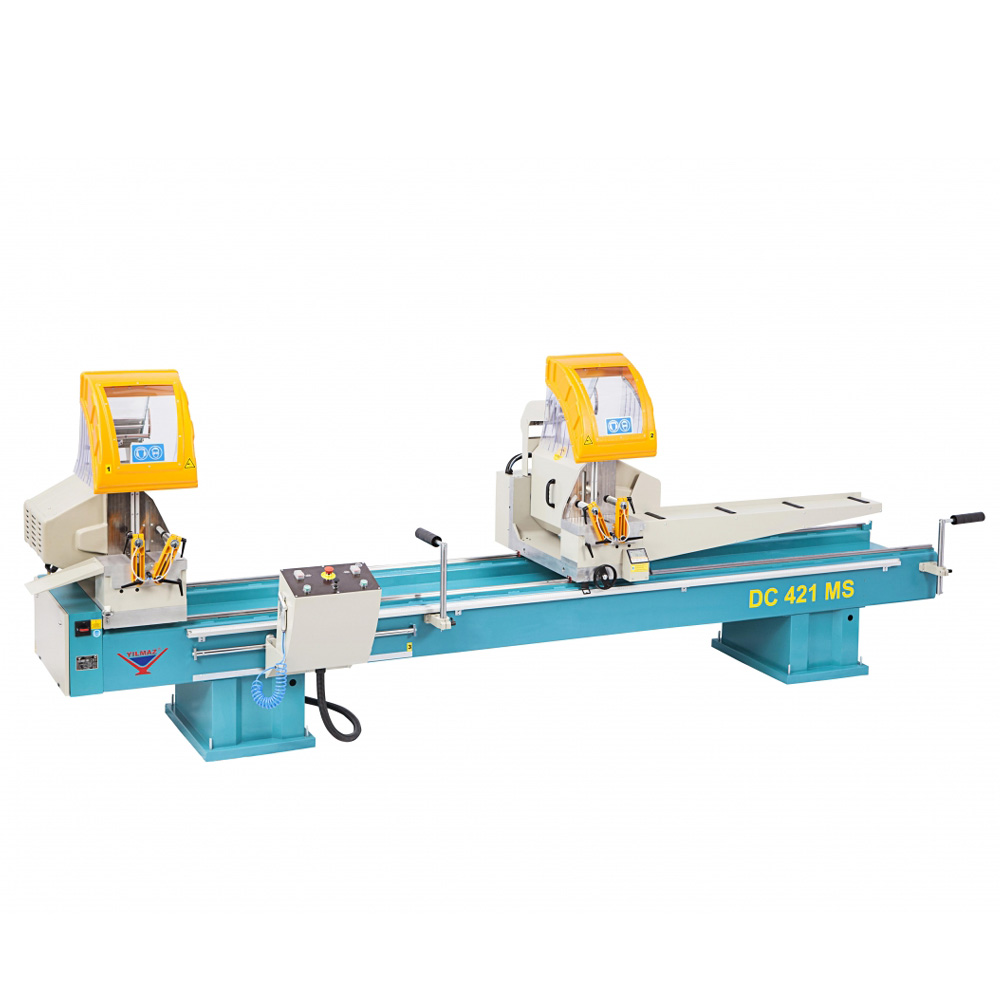

DC 421 MS - MS DOUBLE HEAD MITRE SAW MACHINE

  •  DC 421 MS - MS DOUBLE HEAD MITRE SAW MACHINE
  • Two-hand safety operation
  • Manual adjustment of intermediate tilting angles from 90° to 45° inwards
  • Location points at 45°-30°-22.5°-15°-90°
  • inwards
  • Hydro-pneumatic saw blade feed
  • Cutting accuracy +/- 0.2 mm
  • Manual positioning of cutting units
  • Solid steel construction of the body
  • Conveyor & 2 x pneumatic profile supports
  • Automatically closing safety guards
  • Horizontal pneumatic material clamps to ensure optimum material fixing


STANDARD ACCESSORIES

  • Equiped with Ø 420 mm of saw blades
  • Roller conveyor & 2 x manual profile supports
  • 4 x horizontal clamps
  • Air gun


OPTIONAL ACCESSORIES

  • Machine with the length of 5m and 6m
  • Chip vacuum extractor & accessories
  • Chip removal conveyor belt
  • Spray saw blade lubrication system
  • 2 x vertical clamps

Write a review

Note: HTML is not translated!
    Bad           Good
  • Brand:
  • YILMAZ

  • Product Code:
  • DC 421 MS

    DC 421 MS is designed for the strait or angular cutting operations of large size of profiles made of PVC and aluminum materials by means of double head sawing units equipped with Ø 420 mm of saw blades
