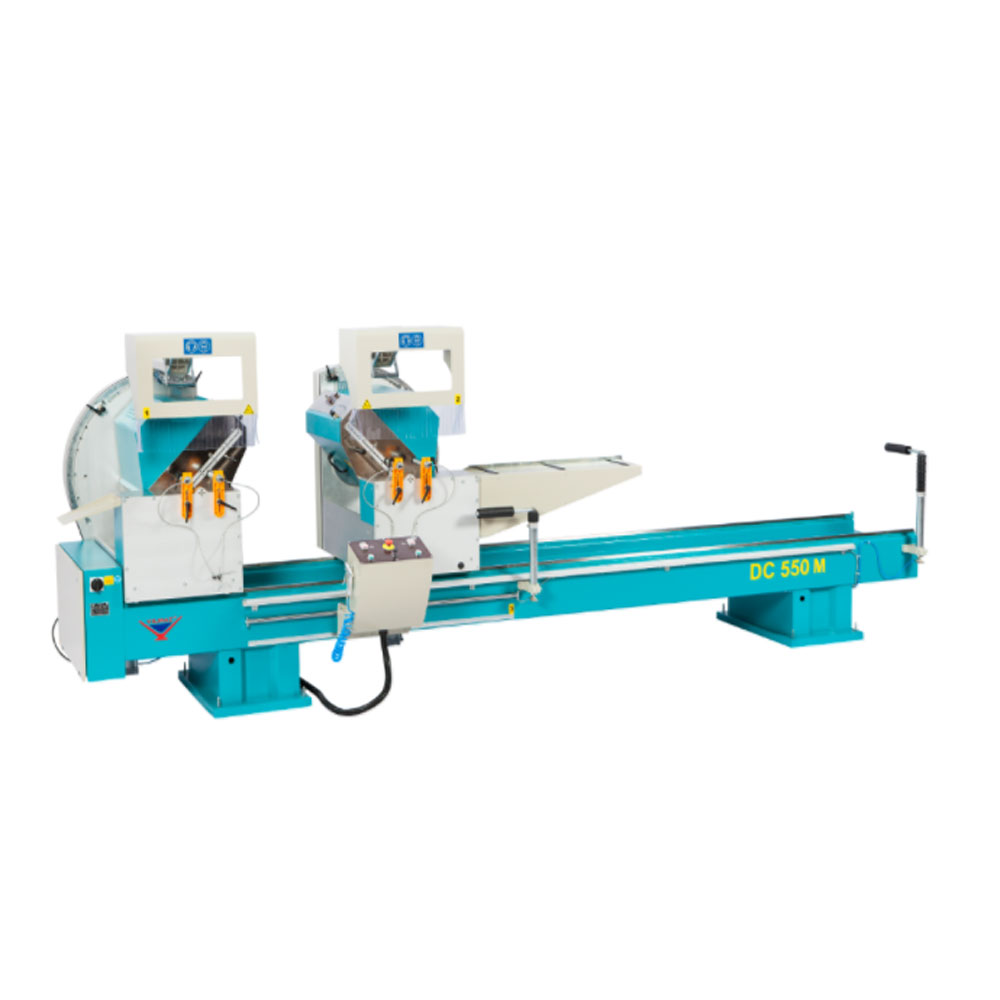

DC 550 M - DOUBLE HEAD MITRE SAW MACHINE

  •  DC 550 M - DOUBLE HEAD MITRE SAW MACHINE
3 kw x 2 50/60 Hz
400V AC 3P N PE
3000 rpm
D:550mm d:30-32 mm
64 Lt/dak.
6/8 Bar
124 x 512 x 187 cm
1730 kg
1380 kg
  • Two-hand safety operation
     Tilting range 45° inwards and 22.5°
    outwards
  •  Intermediate tilting angles 45°
    inwards- 22.5°outwards infinitely
    adjustable
  •  Hydro-pneumatic saw feed
  •  Cutting accuracy +/- 0.1 mm
  •  Tilting automatically for both angles 90°
    and 45° inward
  •  2 x pneumatic profile supports
     Automatic slicing feature at 90° and 45°in
    ward (DC 550 PB)
  •  Windows based industrial PC and 15’’ LCD
    touch screen color monitor (PB model))
  •  Facility to transfer the cutting list at ‘mdb’
    format via USB and network (PB model)
  •  Remote connection via internet and pro
    viding technical support (PB model)
  •  Barcode printer & image print (PB model)


STANDARD ACCESSORIES

  •  Equipped with saw blades 2x ? 550 mm
  •  Roller conveyor & 2x pneumatic profile supports
  •  Spray saw blade lubrication system
  •  Barcode printer (DC 550 PB)
  •  4x horizontal clamps
  •  2x vertical clamps
  •  Air gun


OPTIONAL ACCESSORIES

  •  Machine with the length of 5m and 6m
  •  Chip vacuum extractor & accessories
  •  Chip removal conveyor belt

Write a review

Note: HTML is not translated!
    Bad           Good
  • Brand:
  • YILMAZ

  • Product Code:
  • DC 550 M

    Dc 550 M and DC 550 PB are manual (M model) and full automatic (PB model) sawing machines that are designed for the strait or angular cutting operations of large size of profiles made of PVC and aluminum materials by means of double head sawing units equipped with ? 550 mm of saw blades.
