| 3 kw x 2 50/60Hz |
| 400 V AC 3P N PE |
| 3.000 rpm |
| D:550mm d:30-32 mm |
| 64 L/min. |
| 6-8 Bar |
| 124 x 512 x 187 cm |
| 1.786 kg |
|
1.436 kg
|
- Two-hand safety operation
- Tilting range 45° inwards and 22.5°
outwards - Intermediate tilting angles 45°
inwards- 22.5°outwards infinitely
adjustable - Hydro-pneumatic saw feed
- Cutting accuracy +/- 0.1 mm
- Tilting automatically for both angles 90°
and 45° inward - 2 x pneumatic profile supports
- Automatic slicing feature at 90° and 45°in
ward (DC 550 PB) - Windows based industrial PC and 15’’ LCD
touch screen color monitor (PB model)) - Facility to transfer the cutting list at ‘mdb’
format via USB and network (PB model) - Remote connection via internet and pro
viding technical support (PB model) - Barcode printer & image print (PB model)
STANDARD ACCESSORIES
- Equipped with saw blades 2x Ø 550 mm
- Roller conveyor & 2x pneumatic profile supports
- Spray saw blade lubrication system
- Barcode printer (DC 550 PB)
- 4x horizontal clamps
- 2x vertical clamps
- Air gun
OPTIONAL ACCESSORIES
- Machine with the length of 5m and 6m
- Chip vacuum extractor & accessories
- Chip removal conveyor belt
- Brand: YILMAZ
- Product Code: DC 550 PB

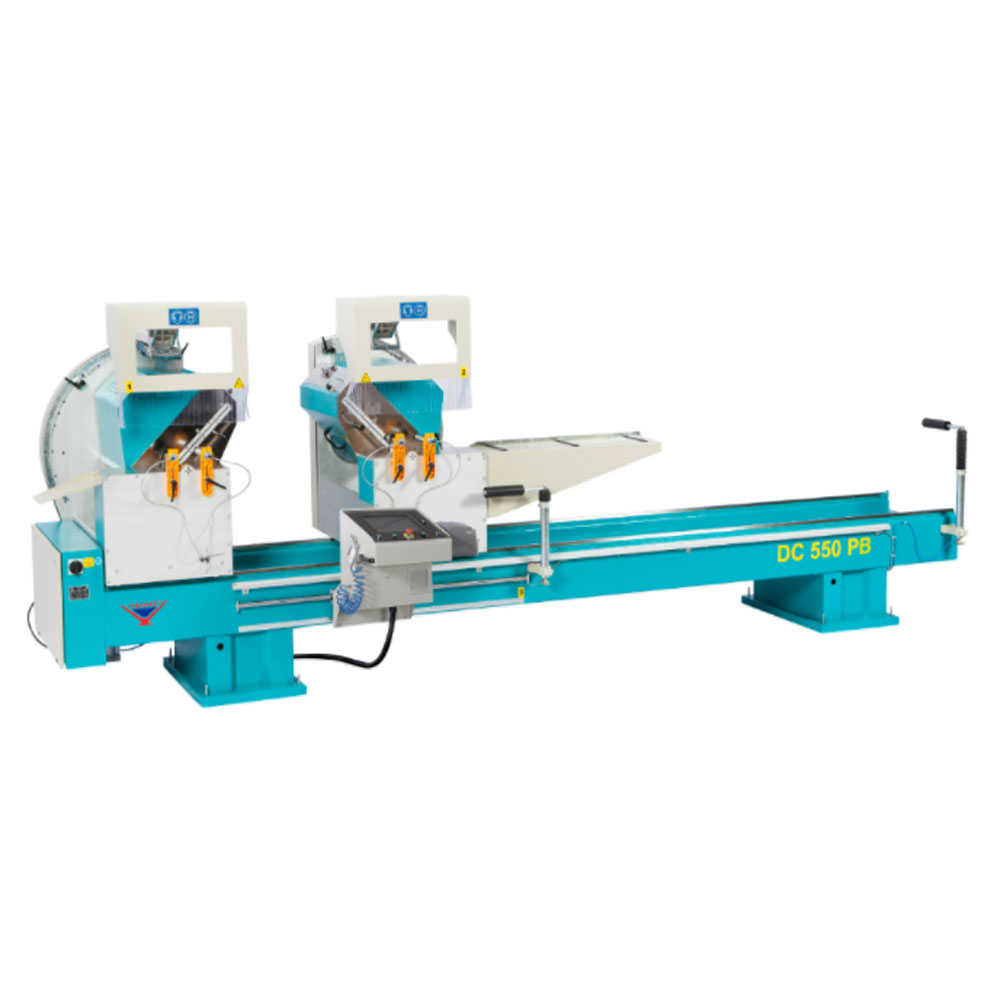

Dc 550 M and DC 550 PB are manual (M model) and full automatic (PB model) sawing machines that are designed
for the strait or angular cutting operations of large size of profiles made of PVC and aluminum materials by means
of double head sawing units equipped with Ø 550 mm of saw blades.
