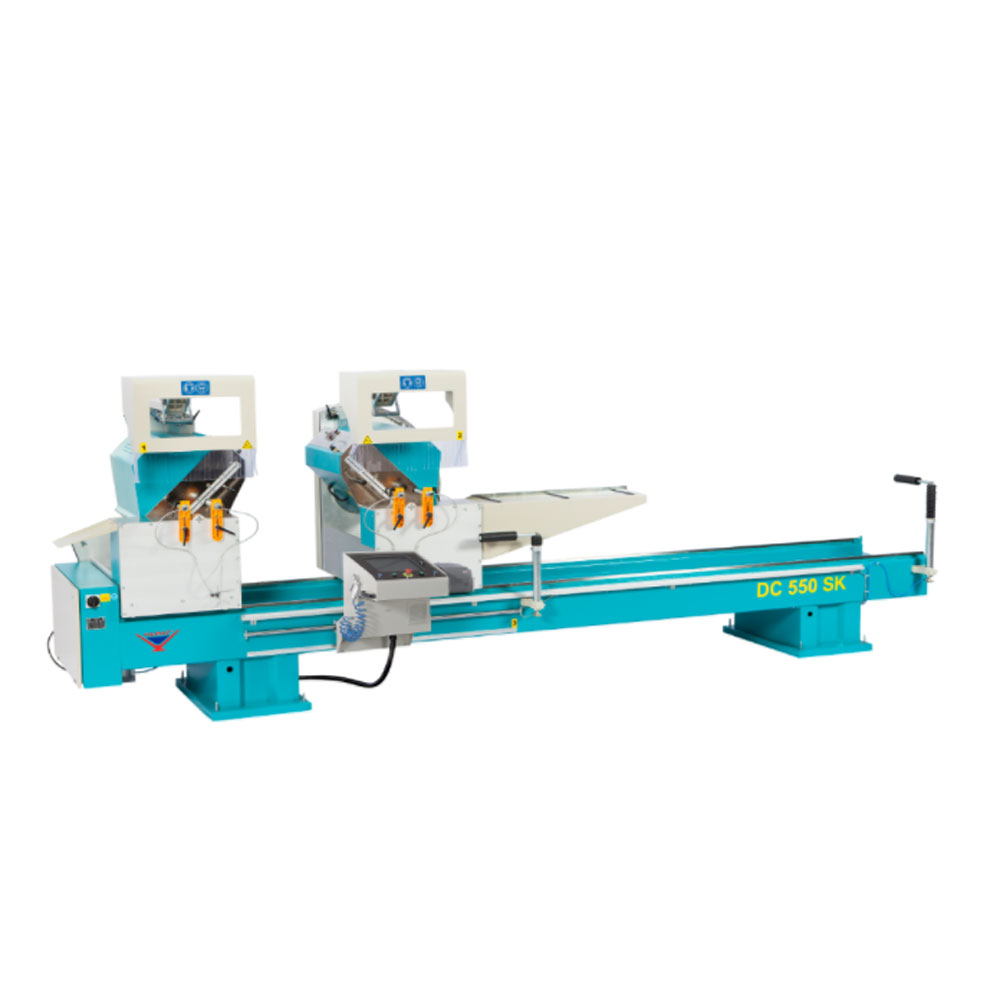

DC 550 SK - DOUBLE HEAD MITRE SAW MACHINE (FULL AUTOMATIC)

  •  DC 550 SK - DOUBLE HEAD MITRE SAW MACHINE (FULL AUTOMATIC)
3 kw x 2 50/60Hz
400 V AC 3P N PE
3.000 rpm
D:550 mm d:30-32 mm
64 L/Min.
6-8 Bar
125 x 511 x 188 cm
1.745 kg
1.470 kg
  • Two-hand safety operation
  •  Equipped with CNC control system for precise
    angular adjustment
  •  Tilting range inwards 45° and outwards 22.5°
  •  Hydro-pneumatic saw feed
  •  Cutting accuracy +/- 0.1 mm
  •  2 x pneumatic profile supports
  •  Windows based industrial PC and 15’’ LCD
    touch screen color monitor
  •  Facility to transfer the cutting list at ‘mdb’
    format via USB and network
  •  Remote connection via internet and providing
    technical support
  •  Barcode printer & image print
  •  Automatic slicing feature
  •  Profile height measuring system (DC 550 SKH)

STANDARD ACCESSORIES

  •  Equipped with saw blades 2 X Ø 550 mm
  •  Roller conveyor & 2 x pneumatic profile supports
  •  Spray saw blade lubrication system
  •  Barcode printer
  •  4 X horizontal clamps
  •  2 X vertical clamps
  •  Air gun

OPTIONAL ACCESSORIES

  •  Machine with the length of 5m and 6m
  •  Automatic profile height measurement system
  •  Chip vacuum extractor & accessories
  •  Chip removal conveyor belt

Write a review

Note: HTML is not translated!
    Bad           Good
  • Brand:
  • YILMAZ

  • Product Code:
  • DC 550 SK

    DC 550 SK is a full automatic sawing machine which is designed for the strait or angular cutting operations of large size of profiles made of PVC and aluminum materials by means of double head sawing units equipped with Ø 550 mm of saw blades.
