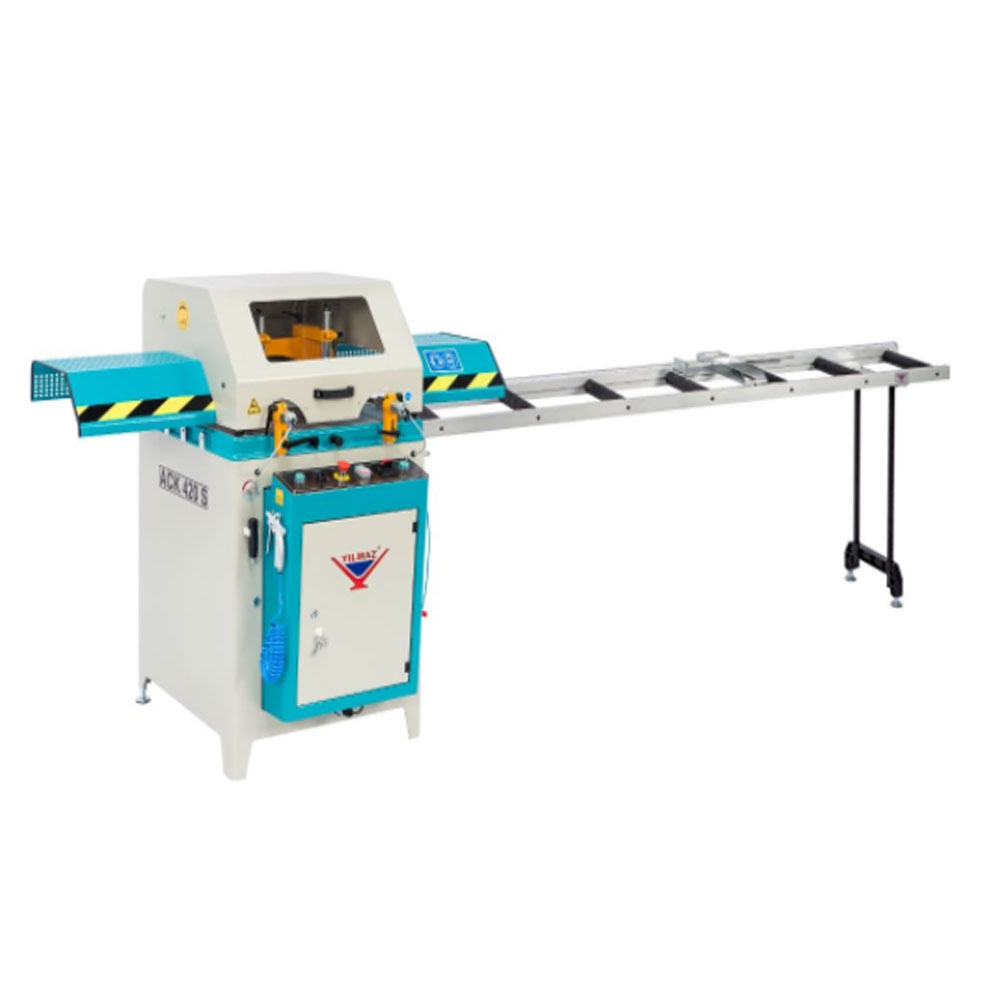

ACK 420 - 420 S - UP-CUTTING SAW MACHINE

  • ACK 420 - 420 S - UP-CUTTING SAW MACHINE
2.2kW 50/60Hz
230V AC P N PE 400V AC 3P PE
3000 D/dak RPM
D: 420 d: 30/32 mm
34 Lt/dak.
6/8 Bar
W: 95 L: 95 H:149 cm
260 kg.
210 kg.
  • Two-hand safety operation
  •  Location points at
    75°,60°,45°,30°,22.5°,15°,0°, both left
    and right
  •  Pivoting range from -75° left to +75°
    right infinitely adjustable
  •  Hydro-pneumatic saw feed
  •  Adjustable back fence for most effective
    use of the saw blade
  •  Adjustable saw blade feeding speed
  •  Manually opening safety guard
  •  Interior LED lighting

STANDARD ACCESSORIES

  •  Equipped with saw blade Ø 420 mm
  •  MKN 301 roller conveyor (3 m)
  •  2 x vertical clamps
  •  Spray saw blade lubrication system (ACK 420S)
  •  Air gun

OPTIONAL ACCESSORIES
Additional saw blade Ø 420 mm

  •  2x vertical clamps

Write a review

Note: HTML is not translated!
    Bad           Good
  • Brand:
  • YILMAZ

  • Product Code:
  • ACK 420 - 420 S

    ACK 420 is designed for the strait or angular cutting operations of the large size of profiles made of PVC and aluminum materials by means of Ø 420 mm of saw blade.
