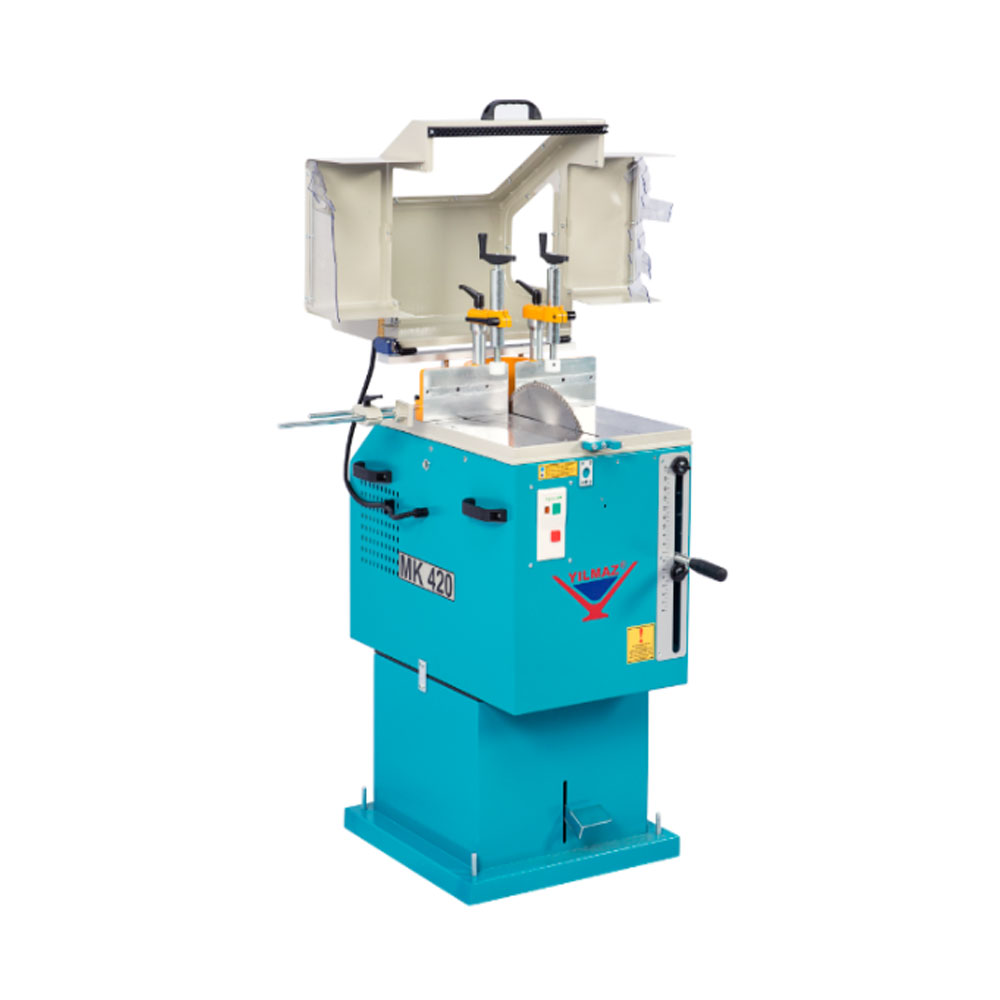

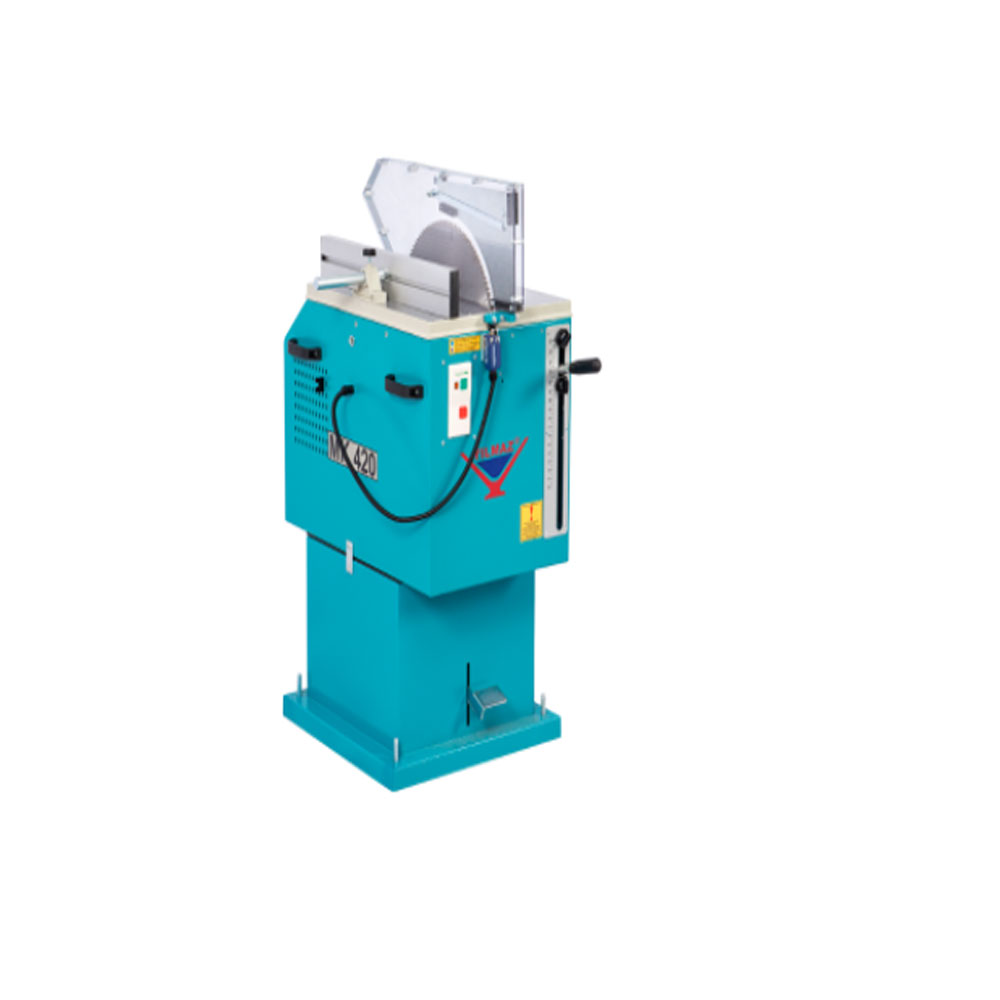

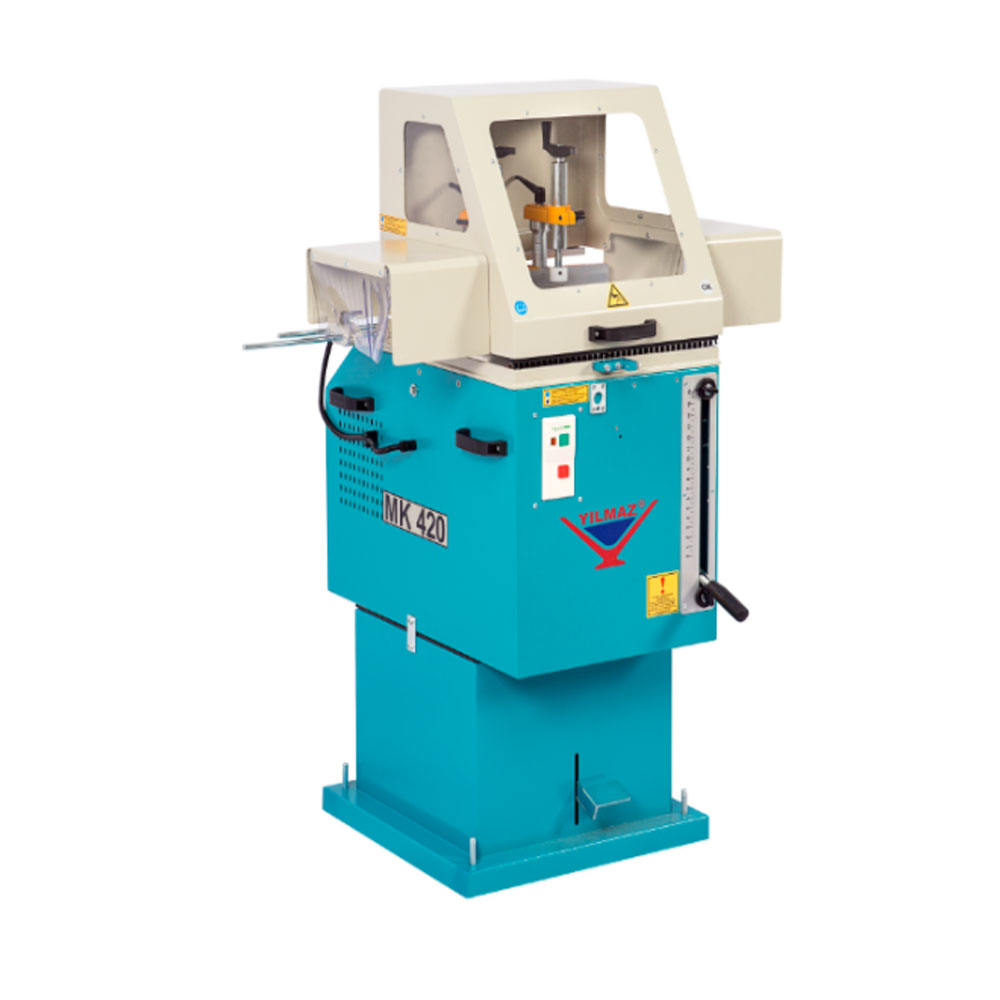

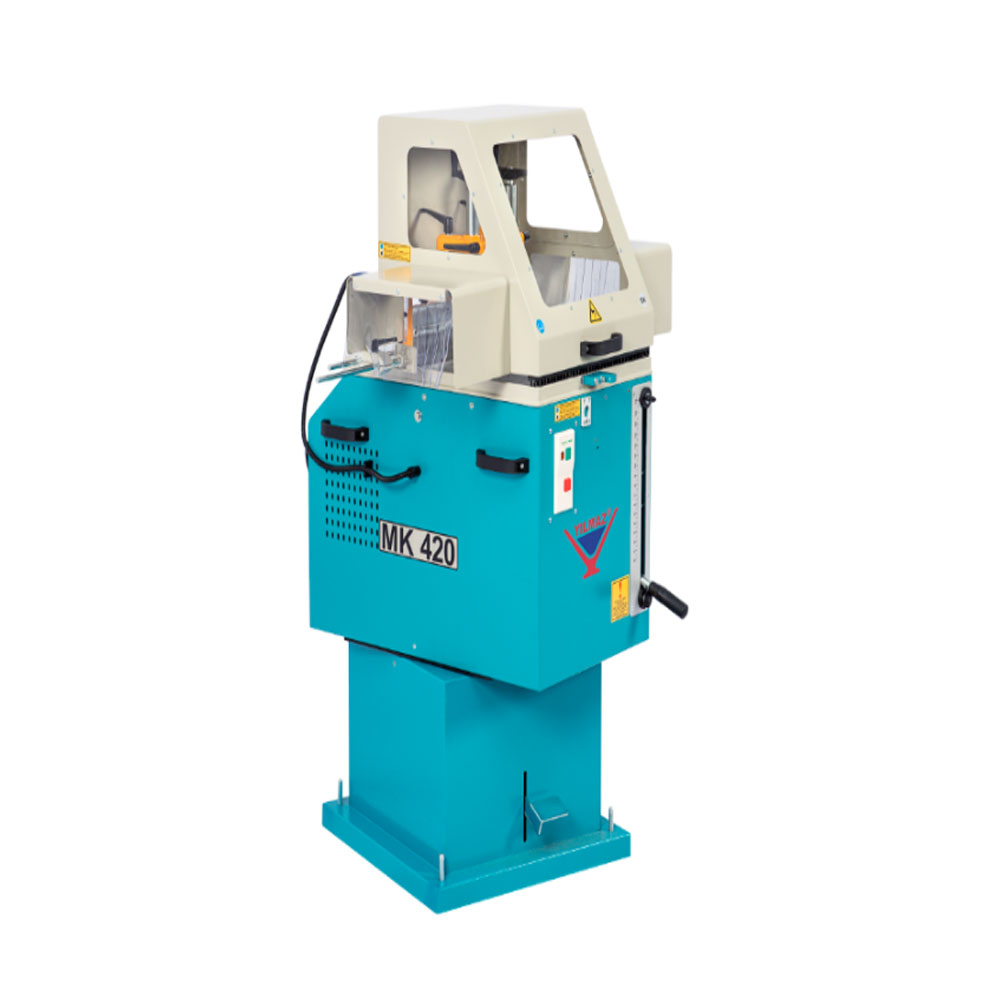

MK 420 - MANUAL UP-CUTTING SAW MACHINE

2.2 kW 50 Hz 400V AC 3P PE
230V AC P N PE 400V AC 3P PE
3000 dev/dak. RPM
D = 420 mm d = 30 / 32 mm
W = 63 L = 98 H = 140
164 kg
132 kg
  • Manual upward saw stroke
  •  The back fence is adjustable to
    allow the most effective use of the saw
    blade capacity for wide and flat profiles
  •  Location points at 30°, 45°, 60°, 67,5°,
    75°, 90° for both left and right
  •  Wide angle cutting range up to 30° to
    the right and 30° to the left
  •  Adjustable machine working direction
    by means of rotatable (360°) platform
    via. foot pedal
  •  Changing the saw blade ease
  •  It has the ability of lateral and
    longitudinal cutting operations

STANDARD ACCESSORIES

  •  Equipped with saw blade Ø 420
  •  Back fence
  •  Profile end support
  •  Safety guard for lateral cutting operations
  •  Safety guard for longitudinal cutting
    operations

OPTIONAL ACCESSORIES

  •  MKN 300 roller conveyor ( 3m)
  •  The kit of pneumatic clamps
    (MK420 PS models)
  •  Spray saw blade lubrication system
    (MK 420 PS models)
  •  Air gun (MK 420 PS models)

Write a review

Note: HTML is not translated!
    Bad           Good
  • Brand:
  • YILMAZ

  • Product Code:
  • MK 420

    MK 420 manual up-cutting saw machines is designed for the straight and angular cutting operations of PVC , aluminum and wooden profiles with the cost at very nominal rates
    The machine can be used for two purposes; the lateral cutting mode and longitudinal cutting mode.
