| 8.4kW 50~60 Hz 400V AC N PE |
| 55 Lt/dak. |
| 6/8 Bar |
| Max. h:140 Max. b:30 Max. b:130 mm |
| W: 408 L: 220cm H: 175cm |
| 2079 Kg |
| 1690 kg |
| h:140mm max. h:30mm min. b:130mm max |
|
h:2700mm max,
h:400mm min. b:3100mm max. b:400mm
|
- Fully automatic four corner welding of PVC
window profiles at an angle of 90° - Welding of a complete window frame or
sash in one cycle - All profile related welding parameters are
individually programmable - User-friendly operating system compatible
to all optimization programs - Parameters are set easily by means of 8’’
LCD color touch screen - Automatic line can be made by combining
with Cooling Unit (SA 250),Corner Cleaning
Machine (CNC 608-610) and Rotating
Robot (SA 260) - Automatically setting of standard (2 mm)
or seamless (0.2 mm) welding options - Long time of Teflon using period by means
of the roller system - Automatically discharging of the frames
after welding operation - Colored and white profiles selection
modes - Saving of time by means of practical mold
change system - Barcode scanner
- Operator safety barrier
- Adjusting the heat between 0-300°C via
electronic thermostat - Minimum welding measurement : 400 x
400 mm (see below sketch and tech.
schema) - Maximum welding measurement: 3100
x 2700 mm (see below sketch and tech.
schema) - Memory capacity to save up programs of
200 different profiles
STANDARD ACCESSORIES
- Manual greasing pump
- 1 set of sash welding mold with 60 mm
of height - 1 set of adaptor for frame profile
OPTIONAL ACCESSORIES
- SA 250 cooling unit
- Gasket pressing system
- Special welding molds on demand
- Brand: YILMAZ
- Product Code: DK 540

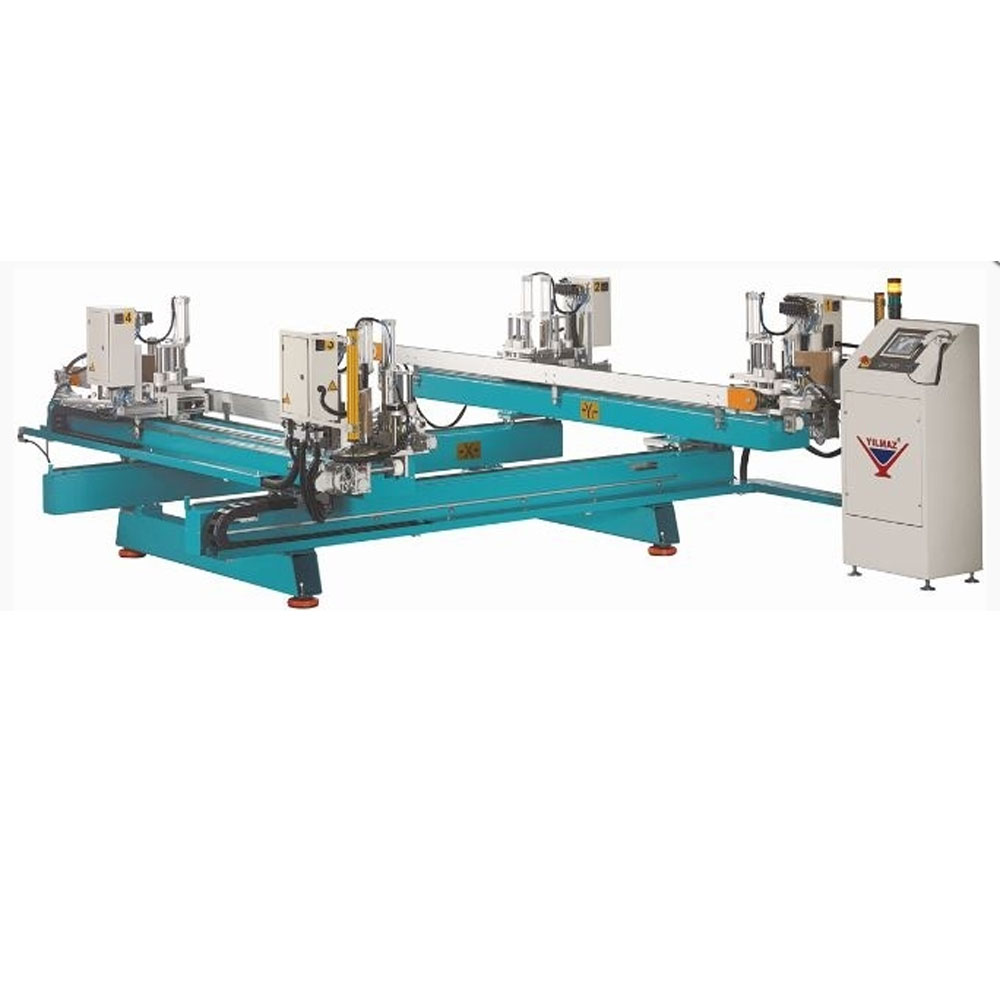

Machine is ideal for welding process of PVC plastic profiles at four corners.
