| RM200A | ||||
| Pipe Capacity (when used with a 5" (12.5 cm) pipe guide). | 1.5" to 8" (3.8 cm to 20.3 cm) | |||
| Push Cable Length | 200' (61 m) | |||
| Diameter | 0.3" (0.76 cm) | |||
| Fiberglass Core Diameter | 0.14" (0.36 cm) | |||
| Minimum Bend Radius | 2.8" (7.1 cm) | |||
| System Weight | 36.3 lbs. (16.5 kg) | |||
| Drum Weight | 16.4 lbs. (7.4kg) | |||
| Drum Diameter | 17" (43.2 cm) | |||
| Camera View | Self-leveling | |||
| Length | 1" (2.6 cm) | |||
| Diameter | 1" (2.5 cm) | |||
| Light | 6 LEDs | |||
| Sonde Frequency | 512 Hz | |||
| Resolution | NTSC 656 x 492 pixels; PAL 768 x 576 pixels | |||
| Spring Assembly Type | Single. Length, 12" (30.8 cm) | |||
| RM200B | ||||
| Pipe Capacity (when used with a 5" (12.5 cm) pipe guide). | 2" to 8" (5.1 cm to 20.3 cm) | |||
| Push Cable Length | 165' (50 m) | |||
| Diameter | 0.35" (0.90 cm) | |||
| Fiberglass Core Diameter | 0.18" (0.45 cm) | |||
| Minimum Bend Radius | 3.5" (8.9 cm) | |||
| System Weight | 39.2 lbs. (17.8 kg) | |||
| Drum Weight | 19.2 lbs. (8.7kg) | |||
| Drum Diameter | 17" (43.2 cm) | |||
| Camera View | Self-leveling | |||
| Length | 1" (2.6 cm) | |||
| Diameter | 1" (2.5 cm) | |||
| Light | 6 LEDs | |||
| Sonde Frequency | 512 Hz | |||
| Resolution | NTSC 656 x 492 pixels; PAL 768 x 576 pixels | |||
| Spring Assembly Type | Dual nested. Length, 17" (43.3 cm) | |||
|
CATALOG NUMBER |
MODEL NO. | DESCRIPTION | WEIGHT | |
| LB. | KG | |||
| 42348 | rM200A | Reel, SeeSnake MAX rM200A w/D2A Drum | 36 3/10 | 16.50 |
| 47528 | rM200B | Reel, SeeSnake MAX rM200B w/D2B Drum | 39 1/5 | 17.80 |
| 47538 | rM200 | Drum, rM200 D2B | 19 1/5 | 8.70 |
| 47548 | rM200 | Drum, rM200 D2A | 16 2/5 | 7.40 |
|
ACCESSORIES
|
||||
|
CATALOG NUMBER |
DESCRIPTION | |||
| 35338 | 45 mm Pipe Guide, Fits 25 mm Camera (pkg. of 2) | |||
| 40598 | 60 mm Pipe Guide, Fits 25 mm Camera (pkg. of 2) | |||
| 46708 | 85 mm Pipe Guide, Fits 25 mm Camera (pkg. of 2) | |||
| 46713 | 125 mm Pipe Guide, Fits 25 mm Camera (pkg. of 2) | |||
| 47793 | 36 mm Pipe Guide, Fits 25 mm Camera (pkg. of 1) | |||
|
REPLACEMENT
PARTS
|
||||
|
CATALOG NUMBER |
DESCRIPTION | |||
| 45438 | Color Self-Leveling Camera Head (NTSC) |
Interchangeability

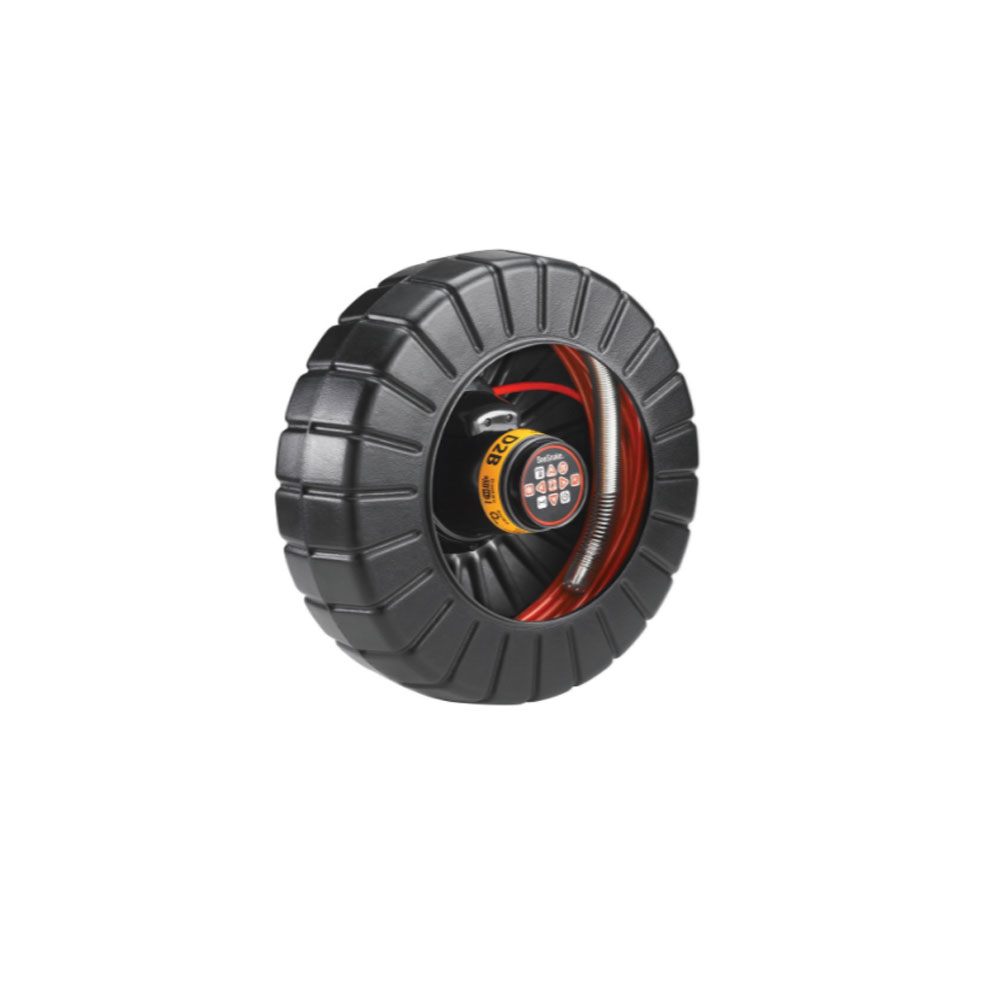

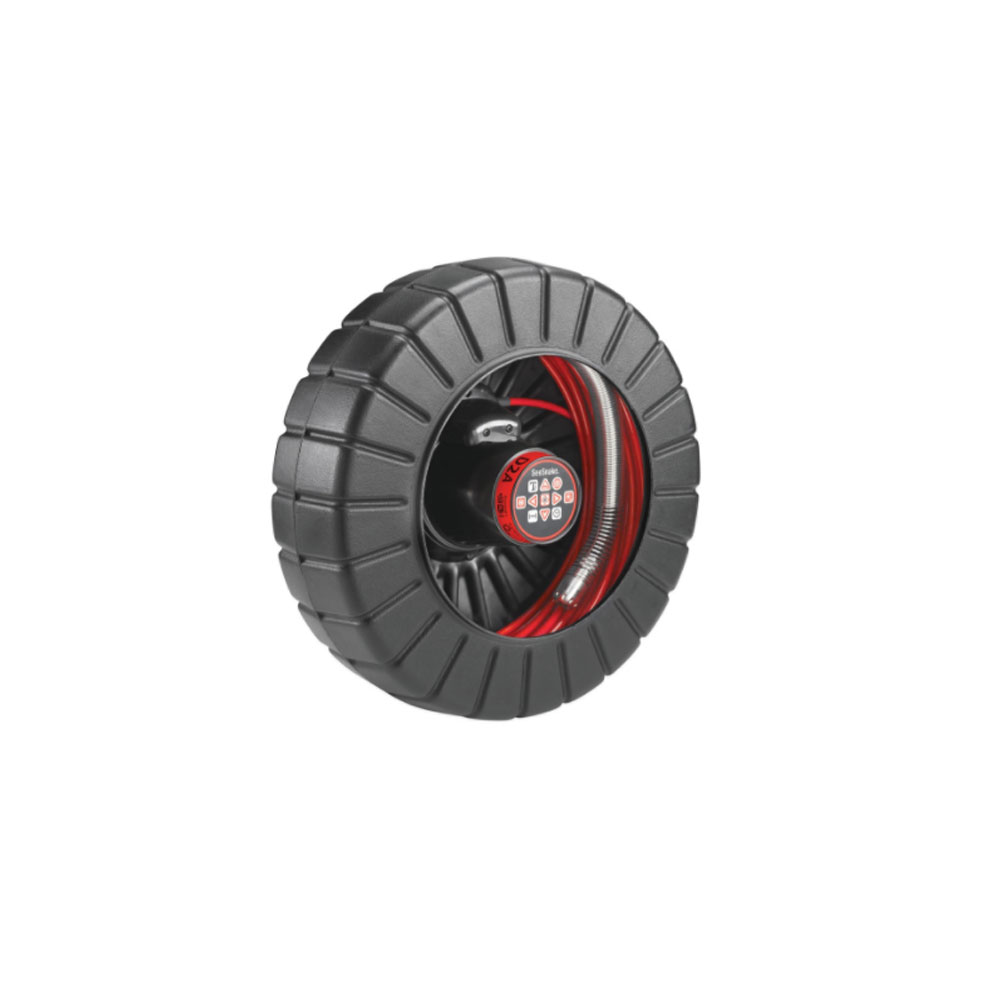

- The D2 drum series currently consists of the D2A and D2B drums.
- The rM200 comes with your choice of drum.
- Either drum can be purchased separately.

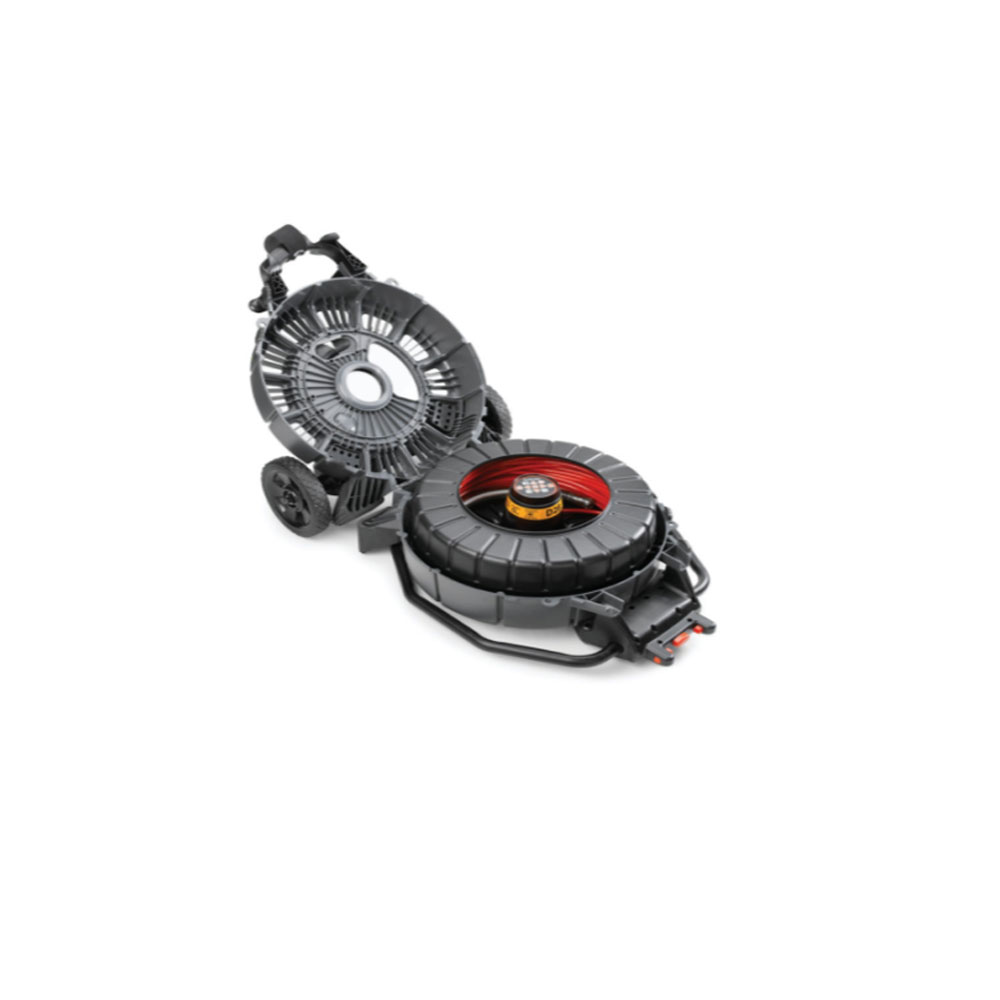

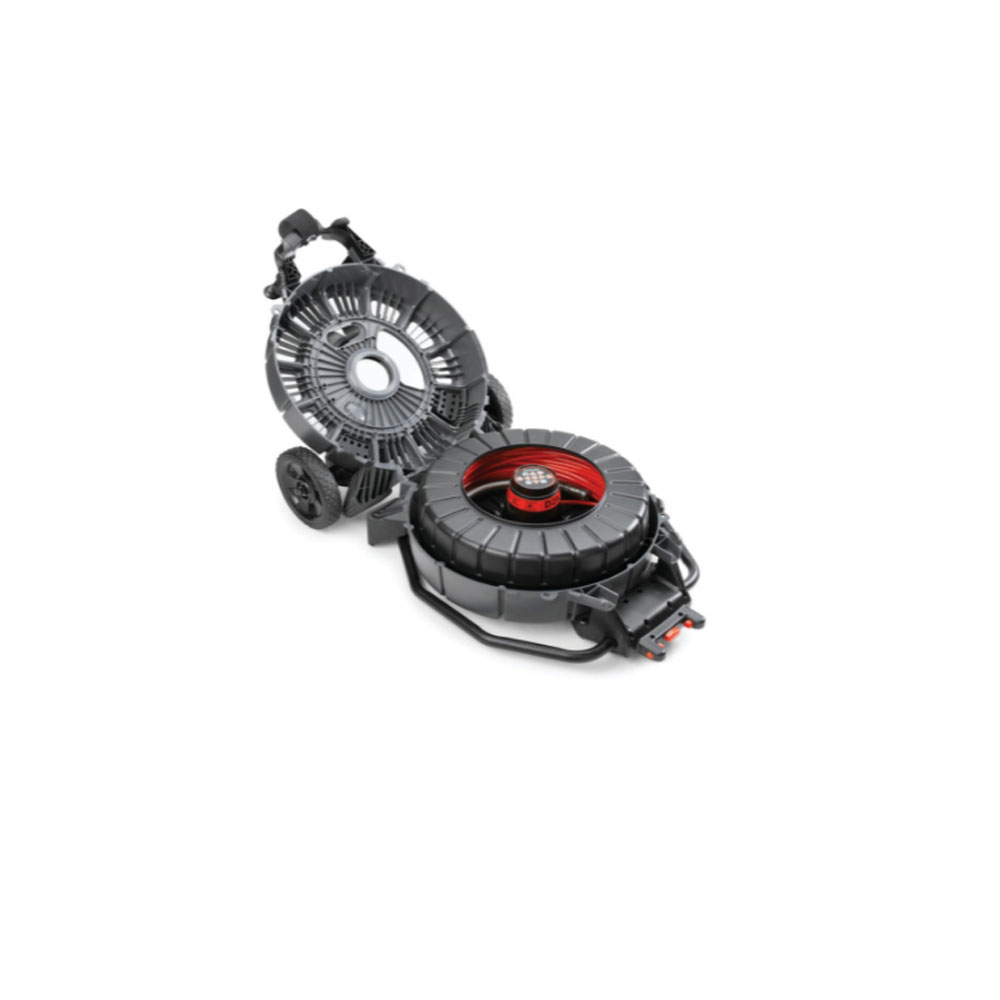

- Own them both to quickly and easily interchange drums for on-the-job flexibility.
Pushability
- Drums feature different push cable lengths, diameters, stiffness and springs.
- Chose the drum that enables you to easily negotiate turns and tees – there’s a drum that’s right for you!
Portability
- Easy to transport with wheels or carry handle.
- Dock the CS6x or CS65x digital monitor for convenient transport, operation and storage.
- Brand: RIDGID
- Product Code: MAX rM200
- Catalog Number: 42348 - 47528 - 47538 - 47548

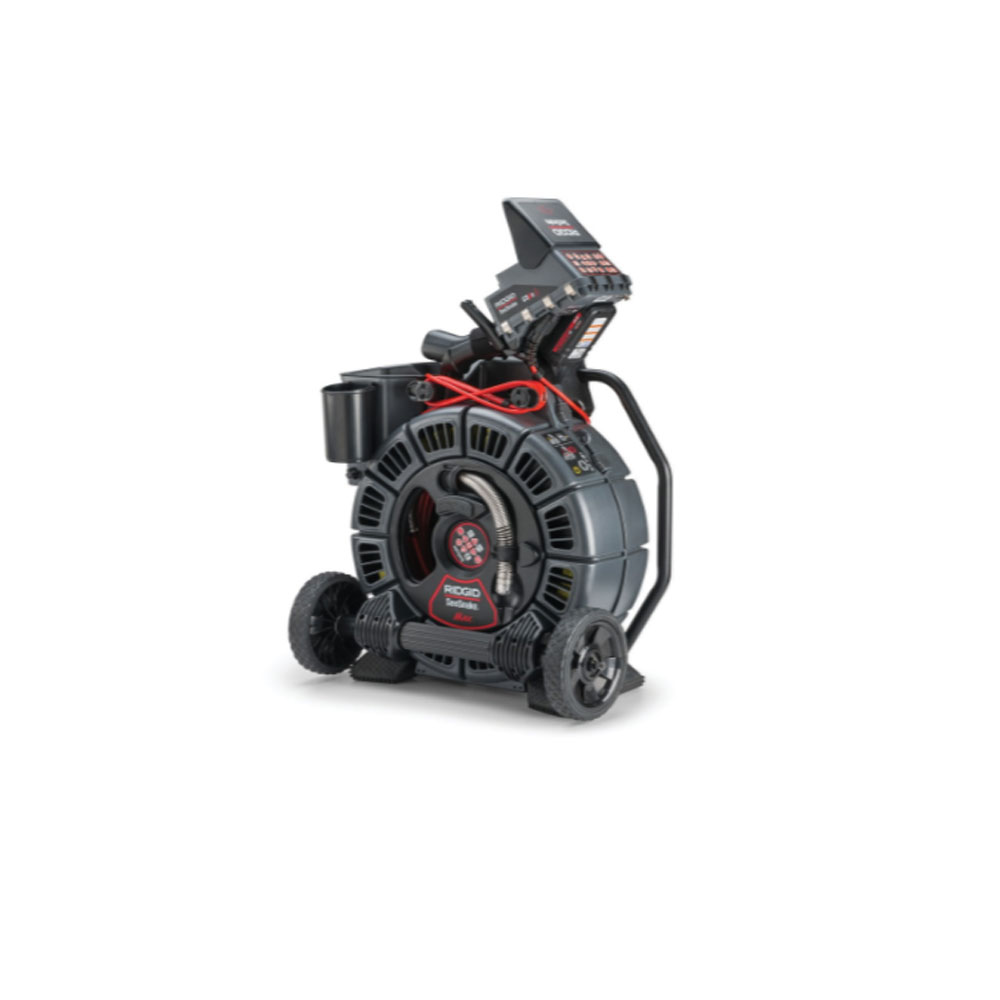

- The rM200 Camera System combines portability with the versatility of the D2 drum series, offering different combinations of push cable stiffness and spring flexibility to tackle any inspection job.
