| Line Capacity | 1 1/2" to 8" (40 to 200 mm) | |||
| Maximum Run | 200' (61m) | |||
| Sonde | 512 Hz | |||
| Weight (without monitor) | 24.5 lbs. (11,1 kg) | |||
| Reel Frame Diameter | 20" (51 cm) | |||
| Camera Diameter | 1.18" (30 mm) | |||
| Camera Length | 1.68" (42 mm) | |||
| Push Cable Diameter | .31" (8 mm) | |||
| Operating Temperature | -4˚ to 104˚F (-20˚ to 40˚C) | |||
| Waterproof Depth | 330' (100 m) | |||
| Video Resolution | 656(H) x 492(V) | |||
| Number of Pixels | 323K. | |||
| Lighting | 6 LEDs or 18 LEDs (for self-leveling model) | |||
|
CATALOG NUMBER |
DESCRIPTION | VOLTAGE (V) | WEIGHT | |
| LB. | KG | |||
| 14063 | 200’ Mini Color Reel (NTSC) | 115 | 24.5 | 11.1 |
| 48488 | 200' Color Self-Leveling Reel (NTSC) | - | 24.5 | 11.1 |
| 14113 | 200’ Mini Color Reel (PAL) | 230 | 24.5 | 11.1 |
| 83607 | SeeSnake Mini 100' (30 m) Color Reel (PAL) | 230 | 19.8 | 9.0 |
| 83617 | SeeSnake Mini 200' (61 m) Color Reel (PAL) | 230 | 26.4 | 12.0 |
| 48493 | SeeSnake Mini 200' (61 m) Self-Leveling Color Reel (PAL) | 230 | 31.5 | 14.3 |
|
ACCESSORIES
|
||||
|
CATALOG NUMBER |
DESCRIPTION | WEIGHT | ||
| LB. | KG | |||
| 15828 | Mini-SeeSnake FleXmitter | 1.0 | 0.0 | |
| 17558 | Color Spanner Wrench | 0.2 | 0.1 | |
| 31753 | Count Plus Cable Counter | - | - | |
| 67307 | SeeSnake Interconnect Cord 33/10' (10 m/3 m) | 1.1 | 0.5 | |
| 67312 | 101 mm Star Guide, Fits 30 mm Camera (pkg. of 20) | 0.7 | 0.3 | |
| 93392 | Mini Guide Hoop, Pkg of 4 | 0.2 | 0.1 | |
| 97462 | 60 mm Pipe Guide, Fits 30 mm Camera (pkg. of 6) | 0.4 | 0.2 | |
| 14133 | Color Camera Head - PAL (230V) | 0.2 | 0.1 | |
| 95507 | 74 mm Star Guide, Fits 30 mm Camera (pkg. of 6) | - | - | |
|
REPLACEMENT
PARTS
|
||||
|
CATALOG NUMBER |
DESCRIPTION | |||
| 14083 | Color Camera Head - NTSC (115V) | |||
| 67322 | 100’ (30 m) Mini SeeSnake Push Cable Assembly | |||
| 67327 | 200' (61 m) SeeSnake Push Cable Assembly | |||
| 48533 | Color Self-Leveling Camera Head (NTSC) |
- 1 1⁄2" to 8" (40 to 200 mm) Lines up to 200' (61 m).
- Ideal for where portability and maneuverability are crucial including multi-story buildings, rooftops, confined areas, etc.
- Self-Leveling Camera Head - delivers crisp, clear, always upright in-pipe images.
- Built-In 512 Hz Sonde - locate a point of interest during a pipe inspection.
- Metal Frame and Rugged Drum - stands up to the rigors of a variety of demanding jobsites.
- Push Cable - pushes farther and tackles a wide range of lateral and mainline applications.
- Brand: RIDGID
- Product Code: Mini Video Inspection System
- Catalog Number: 14063 - 48488 - 14113

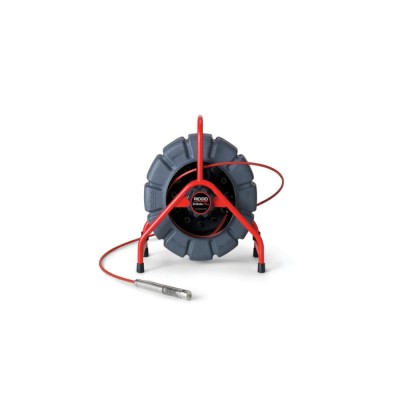

- The SeeSnake Mini video inspection system offers unmatched reliability and performance in a ruggedized package. The Mini is now also available with a durable self-leveling camera head.
