| 3,3 Kw |
| 6 BAR |
| 7 lt./ min. |
| X1:X2 :650,350 mm Y1:Y2 :180,230 mm Z1:Z2 :170,150 |
| 1200 Dev. 1X1,1 Kw |
| 970x 1300 1700 mm |
| 380 |
| 370 |

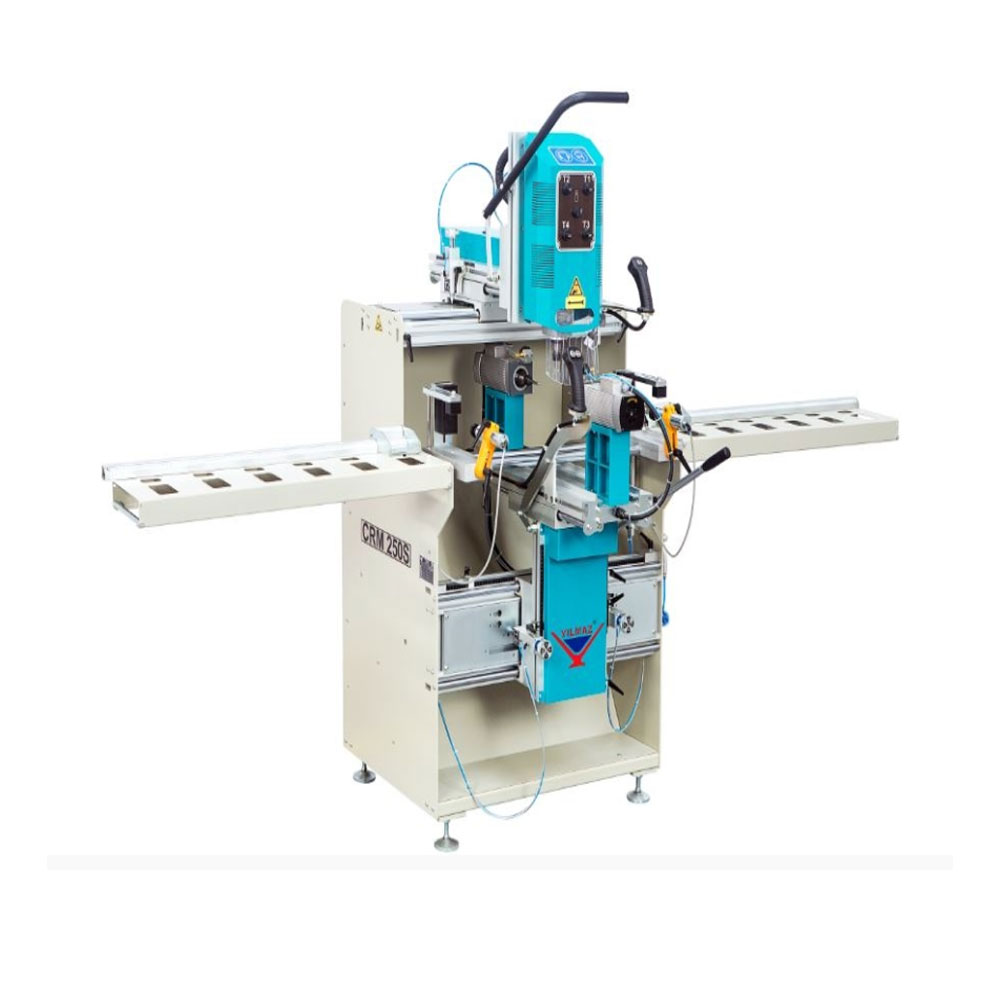

- Copy router with 1 vertical and 2 horizontal spindle motors ( 3 x 1.1 Kw 12.000RPM)
- Designed to perform quickly and precisely lock’s holes on 3 sides of the aluminum profile without releasing the workpiece
- Pneumatic 2 x horizontal and 2x vertical clamps
- Horizontal and vertical pneumatic tracers with 3 diameters Ø 5, Ø 8, Ø 10 mm
- Horizontal & vertical templates with standard figures for Aluminum and PVC profiles.
- Smooth movement, high precision and great sensitivity provided with gas spring and ergonomic handles
- 1 m of roller support table at the right (with ruller) and left side
- Manualy adjustable profile stops 5 placed on the right and left that allows
- he work piece to be positioned properly in the machine.
- Spray tool lubrication system
OPTIONAL
- Additional router bits with Ø5mm, Ø8mm and Ø 10mm
- Additional collets with, Ø 8 and Ø10
- Special templates
- Brand: YILMAZ
- Product Code: CRM 250 S
It is designed to operate quickly and precisely lock’s holes on aluminum profile, without releasing the workpiece.
