| 2200 W |
| 6-8 Bar |
| 8 Lt./dak. Lt./min. |
| X: 300mm Y: 120mm Z:130 mm |
| 18000 D./dak. RPM |
| 900 D/dak. RPM |
| 64 x 80 x 149 cm |
| 150 |
| 110 |
- Copy fitting operates manually and the
figures on the template are machined at 1:1
ratio - The aluminum profiles up to 3 mm of wall
thickness can be machined with a strong
spindle motor - The cutting fluid controlled with a joystick is
sprayed to the milling spot - Slots in varied lengths and widths can be
opened without using the copy milling
template - The length of the water drain slot is
adjustable on the template - Copy milling motor is directly controlled via
joystick - Reference stops at 2 sides of the milling
machine - Standard equipped with inlet-outlet
conveyor - Ergonomic hand control unit
- On the horizontal axis there is triple hole
drilling mechanism - Pneumatically working water slot opening
system
STANDARD ACCESSORIES
- Ø 5mmx L :80mm of router bit
- Air gun
- 2 x profile stops both left and right
- Spray tool lubrication system
- 2x horizontal clamps
- 2x vertical clamps
OPTIONAL ACCESSORIES
- Additional router bits
- Special copy templates
- Brand: YILMAZ

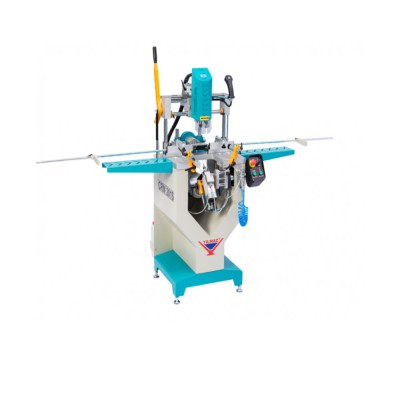

- Product Code: CRM 201 S
It is used for the processing of slots for locks, drilling handles, triple, hinges, espagnolette holes and opening
water drain slot on PVC and aluminum profiles
