| 2.2 kW 400V 3P 50~60 Hz |
| 6~8 |
| 7 Lt./dak. |
| X: 585 Y: 400 Z: 250 |
| 12.000 D/Dak. RPM |
| 125x170x130 cm |
| 510 |
| 430 |
- Equipped with a rotating table fixing at
-90°/0°/+90° in order to machine three faces
of profiles without releasing the clamps - Equipped with table brake system to stop the
turning table and machining the profile in
any angle between -90° and 90° - High performance of spindle motor 3P,
2.2 kW - Processing capacity (X) 585 mm, (Y) 200 mm,
(Z) 200 mm - Quick and easy adjustment of 3 pcs of tracers
with 3 different diameters Ø 5, Ø 8 and Ø 10
mm - Equipped with variable speed spindle
adjusted by inverter and potentiometer
(from 2800 to 12000rpm) - PLC control system
- Gas spring mechanism for helping the
operator to move the head upward after
work - Ability to work steel up to 2 mm of thickness
using the pneumatic water spray cooling
system
STANDARD ACCESSORIES
- Ø 8 mm x L 120 mm cutter bit
- Spray tool lubrication system
- Air gun
- Left and right profile stops
- Service spanners (24 mm)
- Collet wrench
- Copy template equipped with machine
- LED lighting equipment
- 4 x horizontal clamps
OPTIONAL ACCESSORIES
- Digital measuring system indicating
the table rotating angle on the screen - Collet for Ø 5 cutter bit
- Collet for Ø 8 cutter bit
- Collet for Ø 10 cutter bit
- Special copy templates
- Brand: YILMAZ

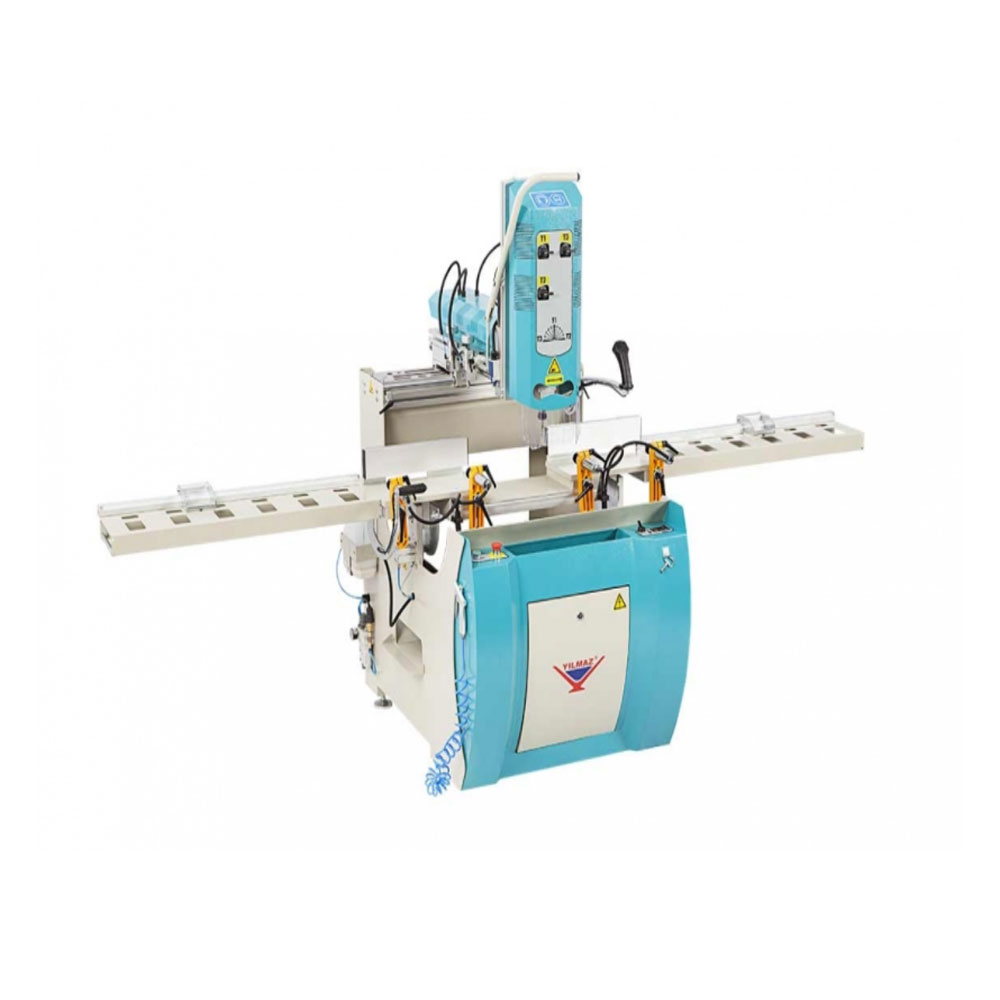

- Product Code: CRM 301 S
It is used for the processing of slots for locks, drilling handles, hinges, espagnolette holes and opening water drain slot on PVC and aluminum profiles without releasing the workpiece
