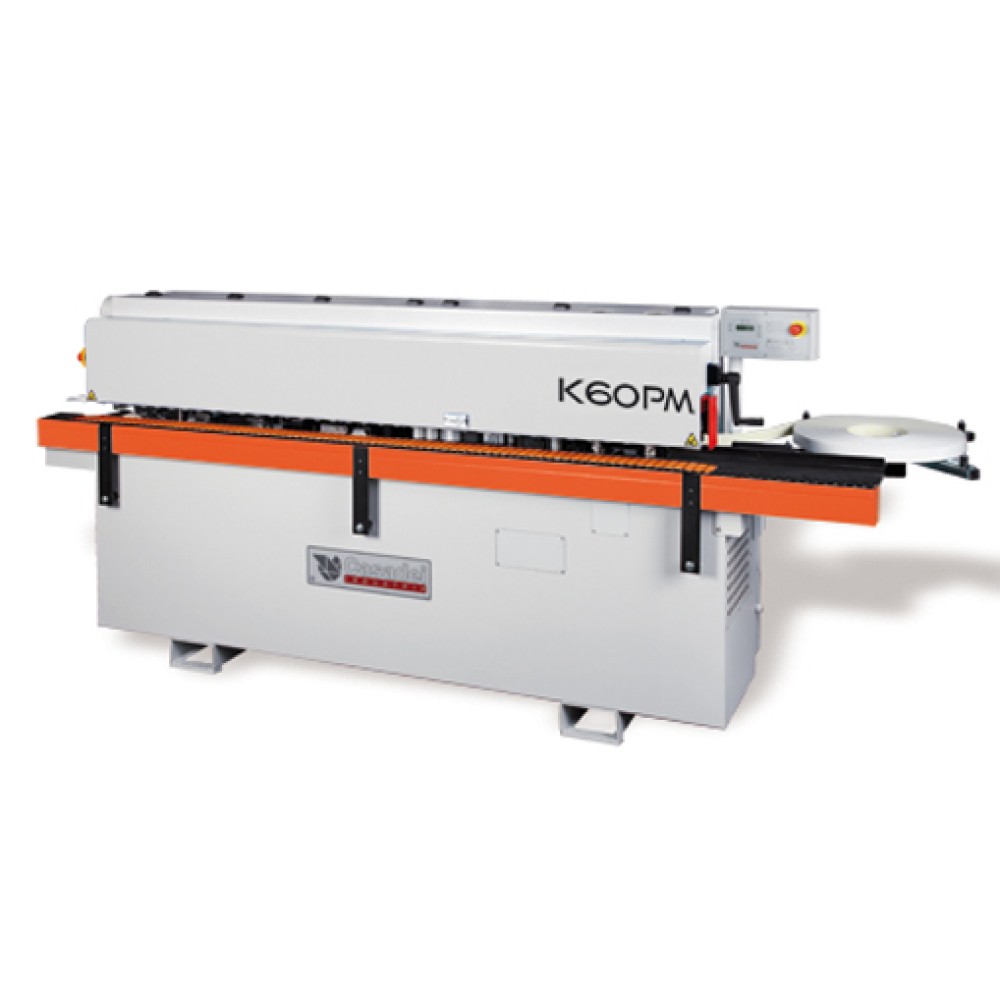

AUTOMATIC INDUSTRY K60 PM

  • AUTOMATIC INDUSTRY K60 PM
Panel height min-max min 8 - max 60 mm
Panel width min. 110 mm
Panel length min. 120 mm
Edge thickness min-max 0, 4 - 3 mm (coil) / 0, 4 - 10 mm (strips)
Panel feeder speed 11 mt/1?
End trimming motor 200 Hz - 12.000 RPM - 0, 27 KW
Flush trimming motors (each) 200 Hz - 12.000 RPM - 0, 50 KW
Cutter heads - TCT combined cutters (beveled/radius) ø 75 mm Z4 - hole ø 16 mm (r=2 - 3 mm)
Total power installed ca. 5 KW

Maximum finishing quality:

  • Chain feeding system
  • Pre-milling (version K60PM)
  • 3 free spaces for finishing units

High performance:

  • 11 m/min feed speed
  • 60 mm panel height
  • 3 mm edge coils
  • 120 mm minimum panel length

Minimum space occupied:

  •  (K60PM) length 3,7 m; 3,2 m (K60)

Easy to use:

  • easy and intuitive use of machine


Write a review

Note: HTML is not translated!
    Bad           Good

  • Product Code:
  • K60-PM AUTOMATIC EDGEBANDER WITH CHAIN FEEDING SYSTEM



Download

Wood Working Machinery Category File.pdf [4.26MB]
