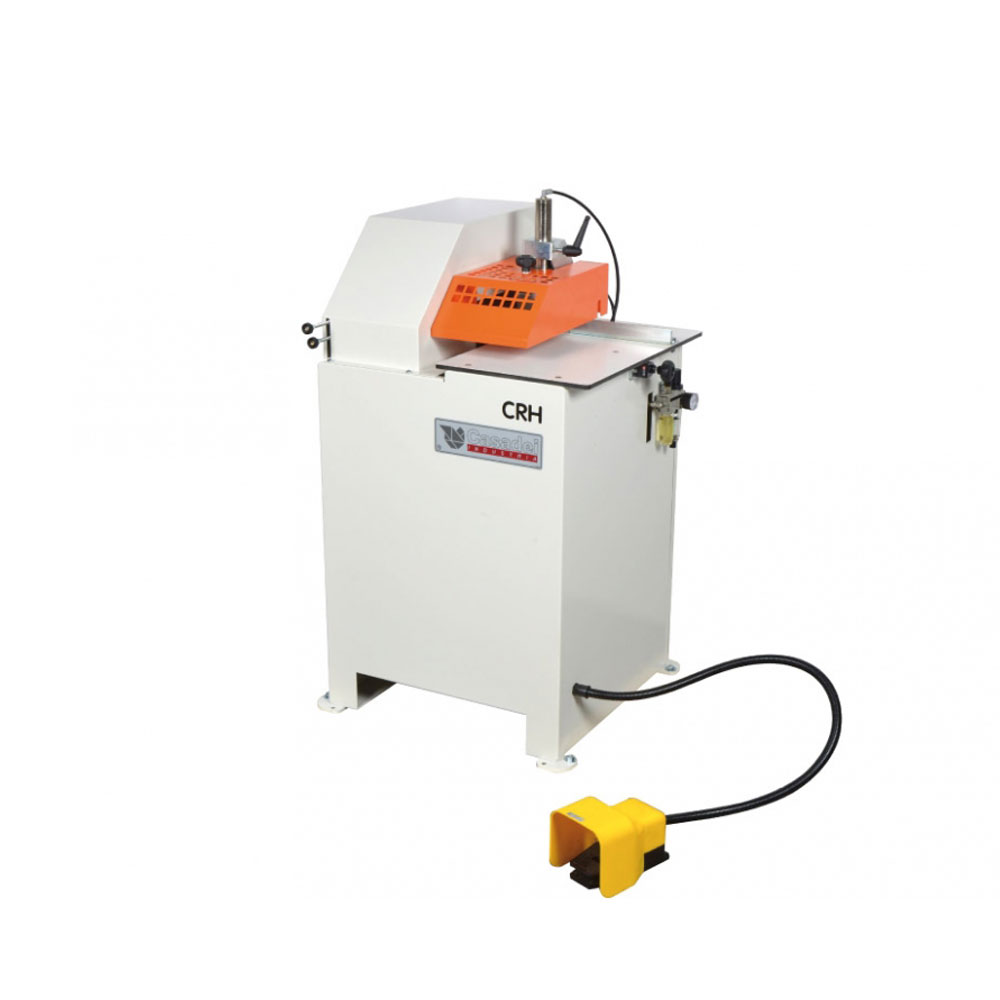

CRH

Panel thickness: min-max 10 - 50 mm
Edge thickness to be trimmed off: min-max 0,4 - 3,0 mm
Pneumatic trimming motor: 0,37 KW 24.000 RPM (Compressed air 6,5 Bar)
Cutterhead: Shaft Ø 6 mm - Z2 R = 2 mm - Z2 R=3 mm
Dust collection outlet: Ø 100 mm

Advantages and benefits:
  • Rounds corners in only a few seconds
  • Follows all types of shapes and corners
  • Eliminates the follow-up system cut
  • Rounds kitchen top corners

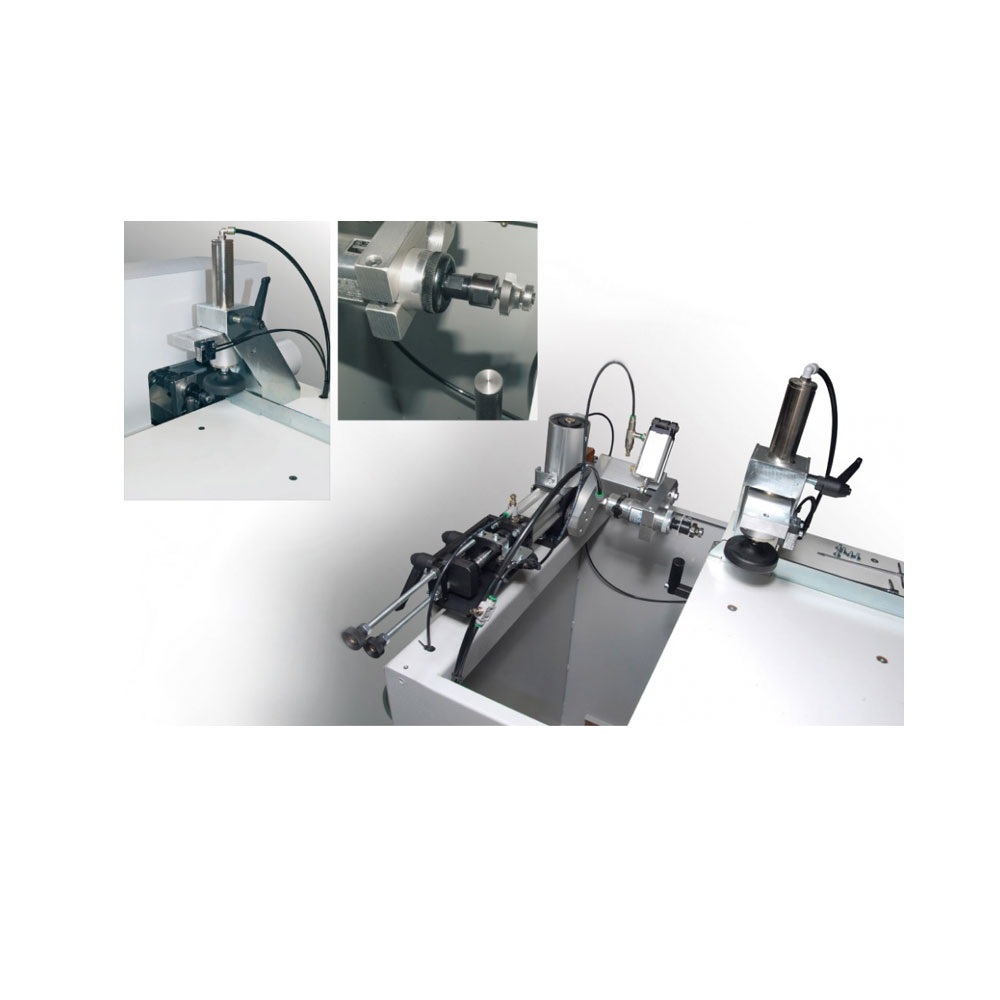

-The CRH is the perfect completion of our Automatic Edgebanders and thanks to an automatic hydropneumatic copying system the CRH executes perfect rounding of sharp and shaped corners on already edged panels.

-The  copy corner rounder CRH does its job with the panels held well in position. This characteristic simplifies a lot the corner rounding unit workmanship which can be found on large and complex machines.

-The match between the Automatic Edgebander and the Corner Rounder represent a simple and economic package for small workshops still keeping high the finishing degree and a good productivity.

Write a review

Note: HTML is not translated!
    Bad           Good

  • Product Code:
  • CRH

    HYDROPNEUMATIC COPY ROUNDER FOR STRAIGHT OR SHAPED CORNERS




Download

Wood Working Machinery Category File.pdf [4.26MB]
