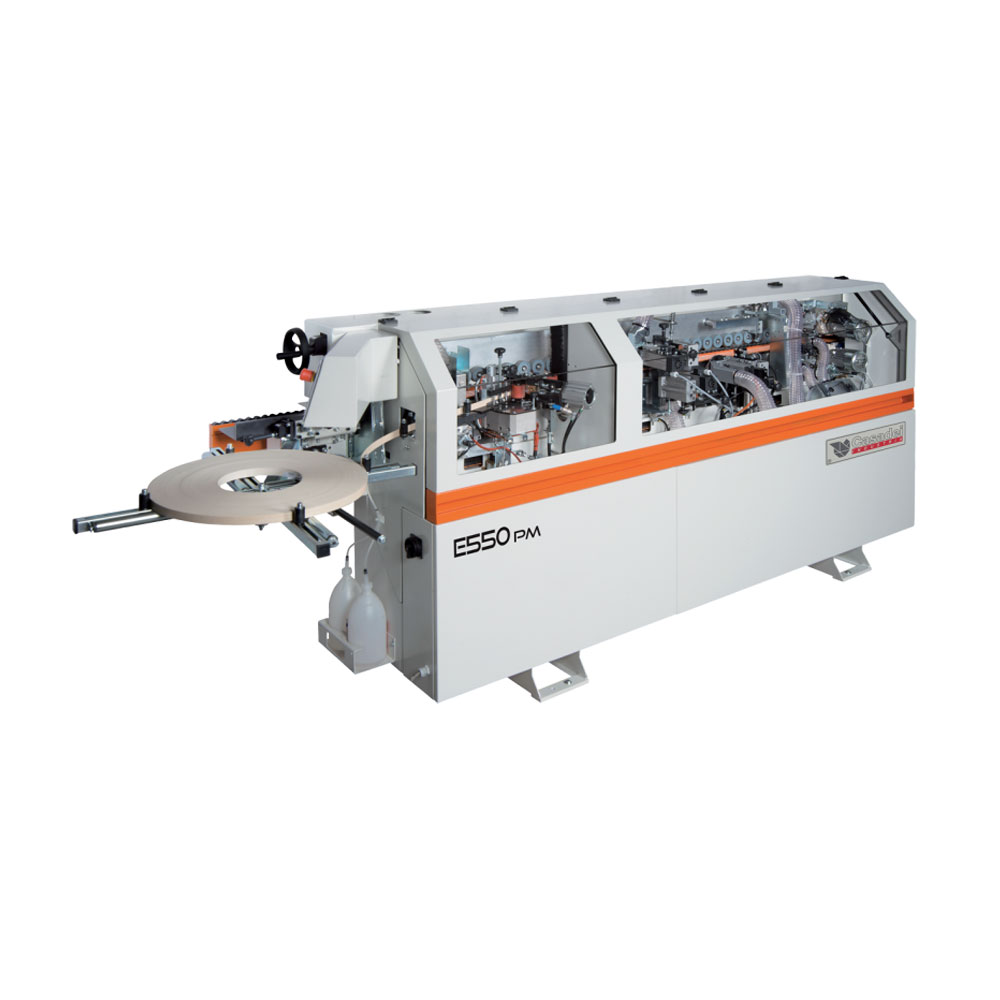

E 550 / E 550 PM

  • Feed speed: 9 m/min
  • Panel thickness: min 8 – max 50 mm
  • Edge thickness in coils: 0,4 ÷ 3 mm
  • Minimum panel length
    (Side being processed): 110 mm
  • Minimum panel width: 95 mm

Advantages and benefits
Maximum finishing quality

  •     Chain feeding system
  •     Pre-milling (version E550PM)
  •     3 free spaces for finishing units

High performance

  •     9 m/min feed speed
  •     50 mm panel height
  •     3 mm edge coils
  •     110 mm minimum panel length

Minimum space occupied
 length 3,2 m

Easy to use

  • unit settings with a piece of edge
  •  easy and intuitive use of machine

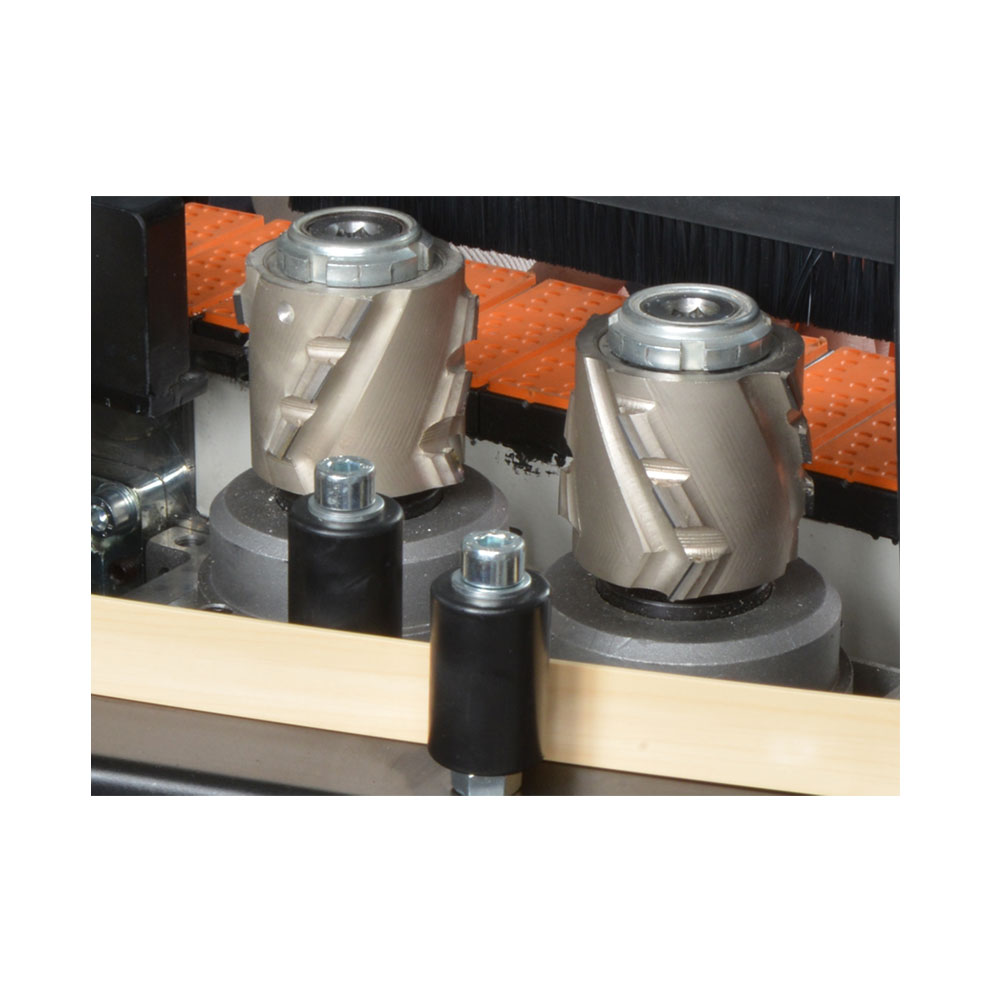

Pre-milling with diamond cutterblocks (version E550PM)

  • N. 2 diamond cutterblocks at opposite rotation Ø 60 h 52 mm with 2 extractor hoods Ø 80 mm
  • Feed guide with micrometric adjustment 0 ÷ 2.0 mm
  • HF motors 2 x 0.75 kW 12000 rpm
  • Max milling adjustment of 2 mm with panel heights 8–50 mm

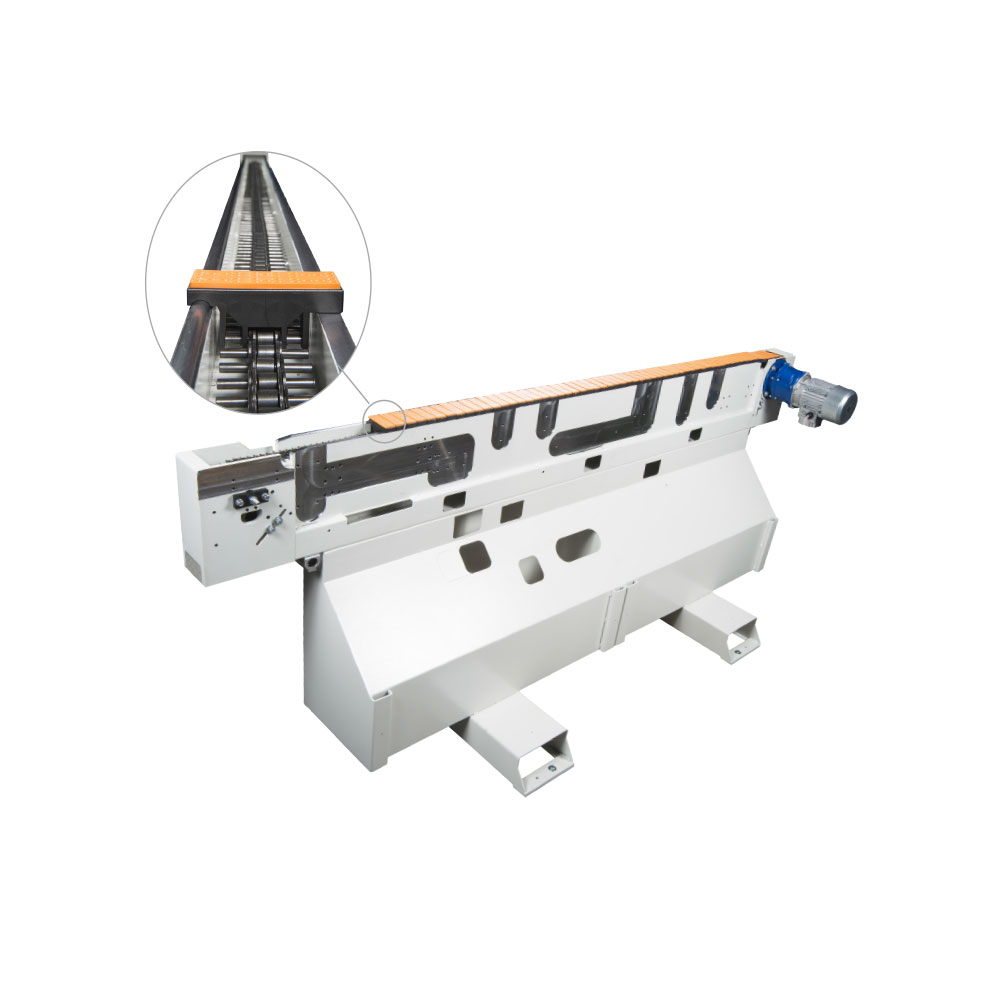

 Panel chain feeding system with rubber pads

  • Feed speed 9 m/min
  • Top bar with double row of rubber rollers adjustable in height

3 free spaces for finishing units

  • Edge scraper: perfect edge finishing, even in backlight
  • Glue scraper: removes glue residues, guaranteeing perfect panel finishing
  • Buffing unit: which polishes, giving uniformity to the colour of the edge where it has been processed

“PURE” Glueing unit (opt.)
Revolutionary glueing technology
“At last, perfect glueing for every level of investment”

The unit can work both with PUR or EVA glue, no cleaning is required even if machine does not work for a few days.

  • Manual loading with hot melt adhesive granules.
  • Quick and easy glue pot cleaning.
  • An extra interchangeable glue pot is avaialble, upon request.
  • Finishing, bonding and sealing of edge incomparable respect to traditional glueing systems.
